Articulated Boom Lift

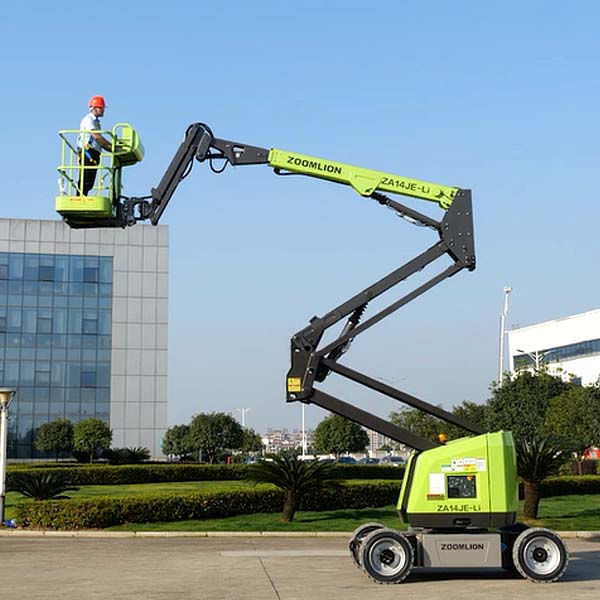

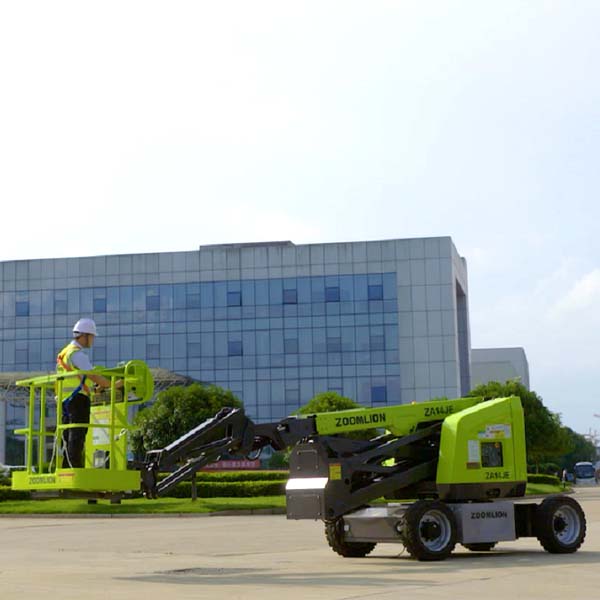

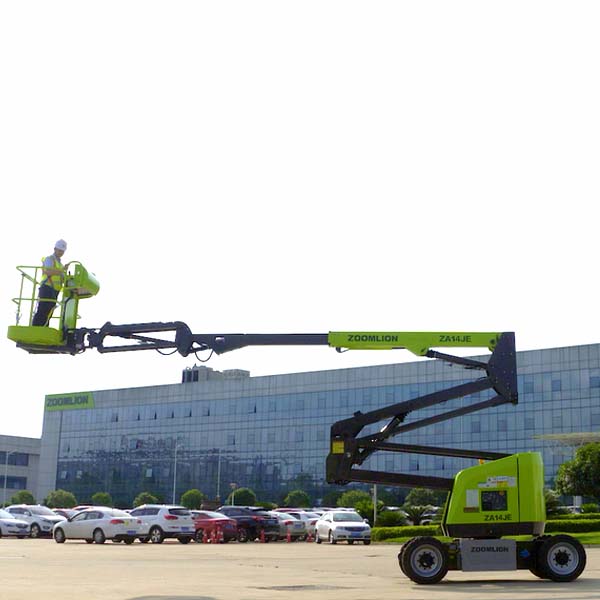

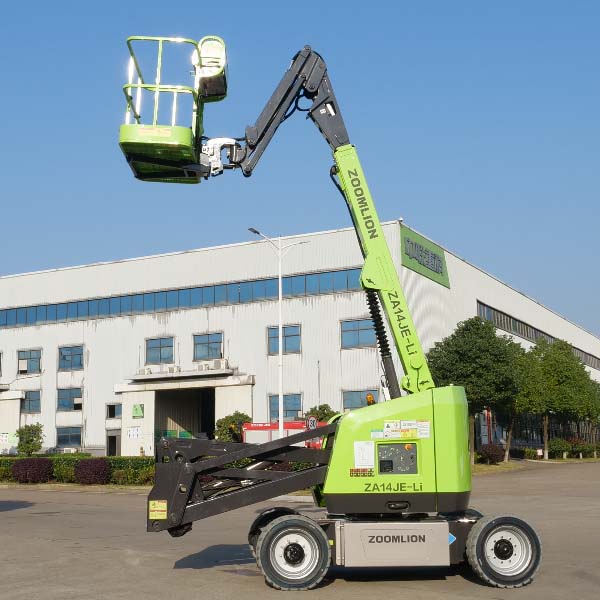

Used Zoonmlion ZA14J Boom lift
As-IsLX-ZOONMLIONZA14J
$12,000 – $61,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | ZA14J |
|---|---|
| Maximum working height | 15.80m |
| Maximum platform height | 13.80m |
| Maximum platform amplitude | 8.30m |
| Maximum span height | 7.55m |
| A storage length | 6.57m |
| B Storage width | 2.30m |
| C Storage height | 2.27m |
| D Working platform length | 1.83m |
| E Work platform width | 0.76m |
| F wheelbase | 2.36m |
| G Minimum ground clearance | 0.42m |
| Rated load | 300kg |
| Maximum speed | 6.8km/h |
| Maximum climbing ability | 45% |
| Wheelbase swing height | 0.1m |
| Inside turn radius | 2.06m |
| Outside turn radius | 4.78m |
| Turret rotation angle | 355° |
| Platform swing angle | 90° |
| H tail-sweep | 0 |
| Maximum working angle | 5° |
| Maximum working wind speed | 12.5m/s |
| Engine model | Kubota V2403 36kw/2600rpm |
| Engine power | 36kw/2600rpm |
| Fuel tank capacity | 65L |
| Auxiliary power | 12V |
| Control voltage | 12V |
| Hydraulic system capacity | 150L |
| Hydraulic reservoir capacity | 76L |
| Tire model | 315/55 D20 foam-filled tire |
| Gross weight | 7100kg |
Description
This unit is available now. Key specifications: Model: ZA14J; Maximum working height: 15.80m; Maximum platform height: 13.80m; Maximum platform amplitude: 8.30m.
