Articulated Boom Lift

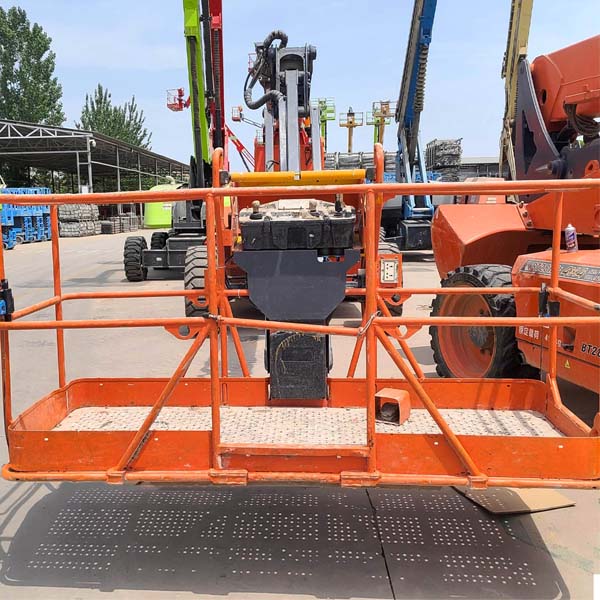

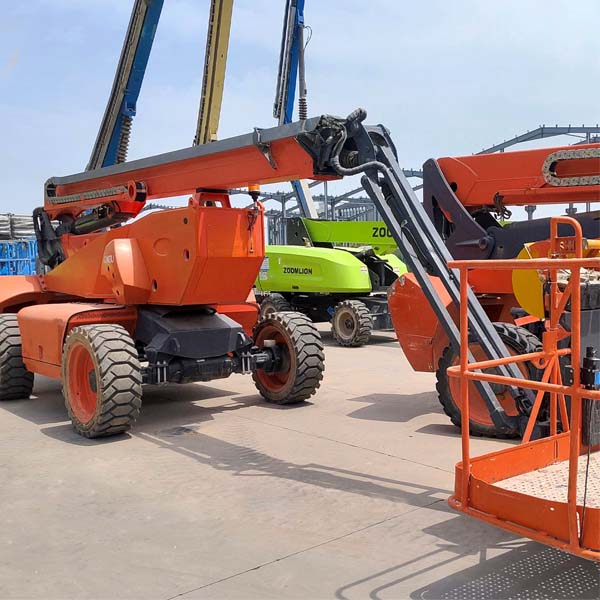

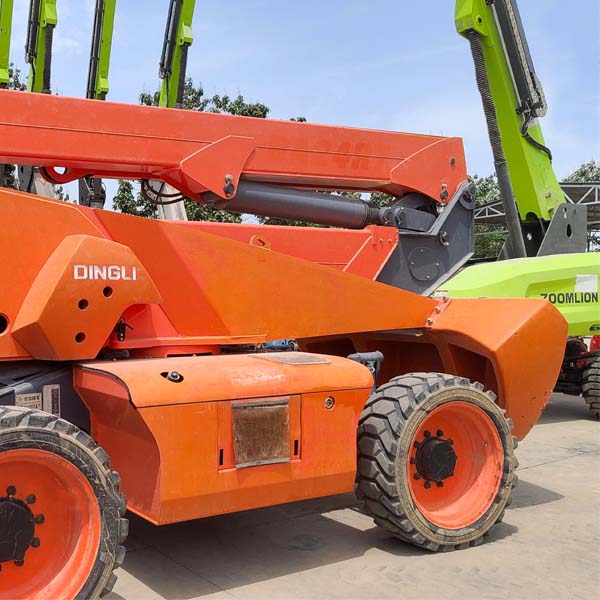

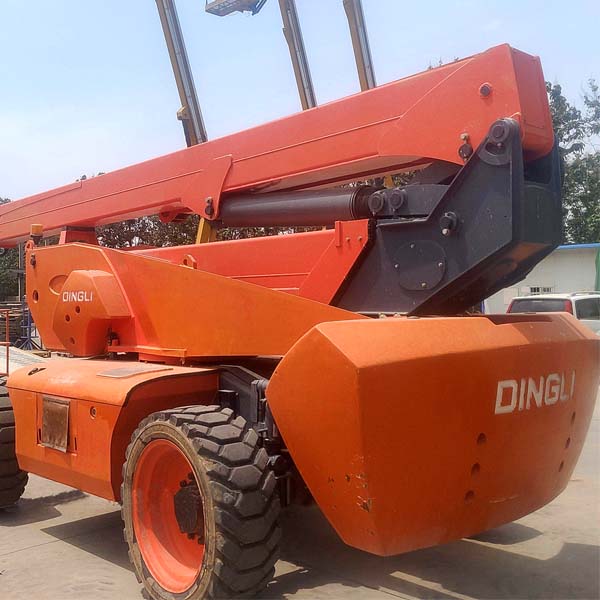

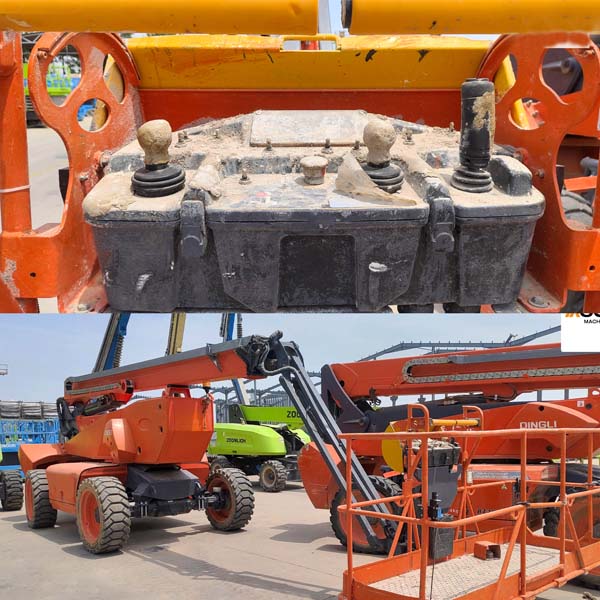

Used Dingli BA24RT Boom lift
As-IsLX-BA24RT
$12,000 – $61,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | BA24RT |
|---|---|
| Maximum working height | 24.30m |
| Maximum platform height | 22.30m |
| Maximum horizontal strain | 16.50m |
| Maximum span height | 9.14m |
| Overall length (in folded state) | 9.82m |
| Overall length (in box) | 10.03m |
| Overall width (collapsed state) | 2.50m |
| Overall width (in packaging) | 2.31m |
| Overall height (in collapsed state) | 2.89m |
| Overall height (in box) | 2.57m |
| Work platform size (length x width) | 2.44m×0.90m |
| Minimum ground clearance | 0.41m |
| Wheelbase | 2.80m |
| Maximum depth of the dive | 4.03m |
| Safety working load | 300kg |
| Maximum number of workers | 2 |
| Tail swing of the turntable | 1.61m |
| Minimum turning radius (inner/outer) | 1.87m/3.22m |
| Turntable rotation angle | 360° continuous |
| Platform swing angle | 180° |
| Forearm elevation angle | 130° |
| Travel speed (collapsible state) | ≤6.0km/h |
| Driving speed (working condition) | ≤1.1km/h |
| Maximum climbing ability | 30% |
| Maximum allowed working angle | X-5°/Y-5° |
| Tire | 385/45-28 |
| Engine Deutz TD2.9 L4 | 55.4kW |
| Fuel | Diesel |
| Hydraulic oil tank | 150L |
| Diesel tank | 135L |
| Gross weight | 17100kg |
Description
This unit is available now. Key specifications: Model: BA24RT; Maximum working height: 24.30m; Maximum platform height: 22.30m; Maximum horizontal strain: 16.50m.
