Articulated Boom Lift

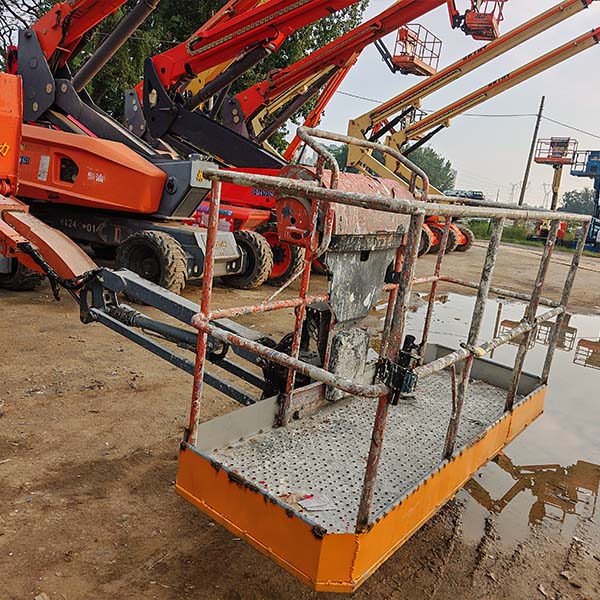

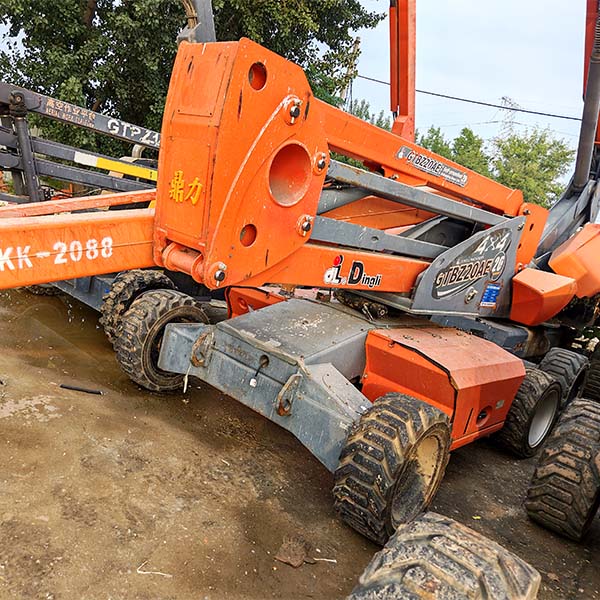

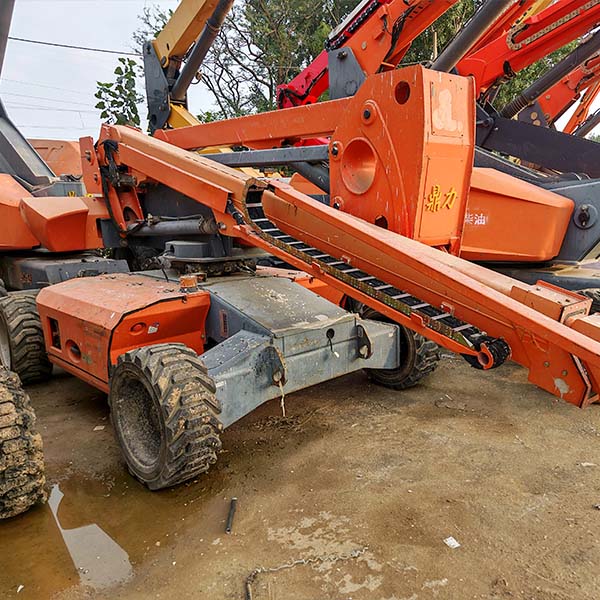

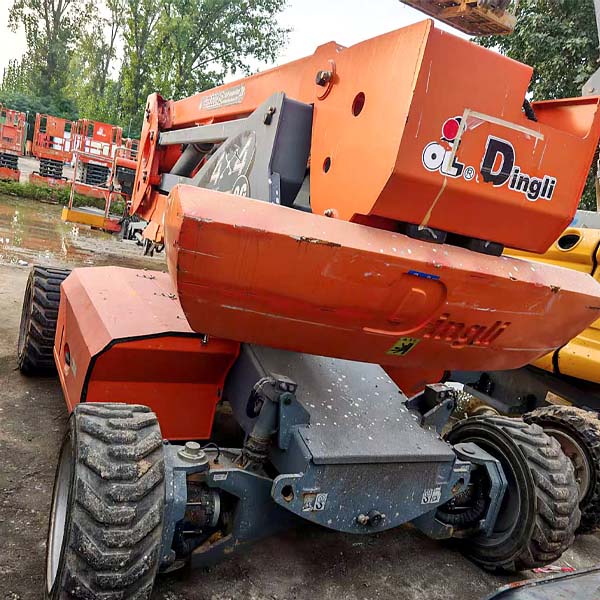

Used Dingli GTBZ20AE Boom lift
As-IsLX-GTBZ20AE
$12,000 – $61,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | GTBZ20AE |
|---|---|
| Maximum working height | 20.23m |
| Maximum platform height | 18.23m |
| Maximum horizontal strain | 11.14m |
| Platform height (clearance height) | 7.65m |
| Overall length (collected state) | 8.61m |
| Overall length (in transport condition) | 6.71m |
| Overall width (standard/transport condition) | 2.49m/2.30m |
| Overall height (standard/transport state) | 2.44m/2.45m |
| Work platform size (length x width) | 2.20mX0.80m |
| Minimum ground clearance | 0.34m |
| Wheelbase | 2.60m |
| Safety working load | 230kg |
| Maximum number of workers | 2 |
| Tail swing of the turntable | 0.63m |
| Minimum turning radius (inside wheel/ outside wheel) | 3.37m/5.37m |
| Turret rotation angle | 360° continuous |
| Platform swing angle | ±90° |
| Forearm swing angle | +70°/-60° |
| Machine travel speed (collapsible state) | 6.1km/h |
| Machine travel speed (lift state) | ≤1.1km/h |
| Maximum climbing ability | 40% |
| Maximum allowable angle of operation | 5° |
| Tire | 315/55 D20 |
| Battery | 48V/320Ah |
| Charger | 48V/60A |
| Drive motor | AC 48V/3.3kW |
| Lifting motor | 48V3.8kw |
| Hydraulic oil tank volume | 67L |
| Weight of the whole machine | 8360kg |
Description
Four-wheel drive and four-wheel steering provide excellent maneuverability. Equipped with a fully automatic extending axle, the machine offers a 40% gradeability. The boom’s rotation and retraction design reduce the overall length, making transportation easier and more convenient.
