Used Zoomlion ZA20J Boom lift
$12,000 – $61,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | ZT20J |
|---|---|
| Maximum working height | 22.75m |
| Maximum platform height | 20.75m |
| Maximum job range | 17.4m |
| A Storage length | 10.36m |
| B Storage width | 2.49m |
| C Storage height | 2.78m |
| D Work platform length | 2.44m |
| E Work platform width | 0.91m |
| F wheelbase | 2.52m |
| Wheelbase | 2.13m |
| G Minimum ground clearance | 0.42m |
| Rated load (unlimited/limited) | 300/454kg |
| Driving speed (collection state) | 6.0km/h |
| Maximum climbing ability | 45% (24°) |
| Inside turn radius | 2.4m |
| Outside turn radius | 5.4m |
| Turret rotation angle | 360° continuous |
| Platform swing angle | ±90° |
| Tail wagging | 1.45m |
| Wing arm swing angle | 135°（﹣60°~75°） |
| Maximum working wind speed | 12.5m/s |
| Engine model | WanChai WP3.2G50E317A |
| Fuel tank capacity | 150L |
| Control voltage | 12V DC |
| Hydraulic tank capacity | 150L |
| Drive mode | Four-wheel drive |
| Steering method | Front wheel steering |
| Tire model | 36×14-20/8.5 Solid tire |
| Gross weight | 11980kg |
Description

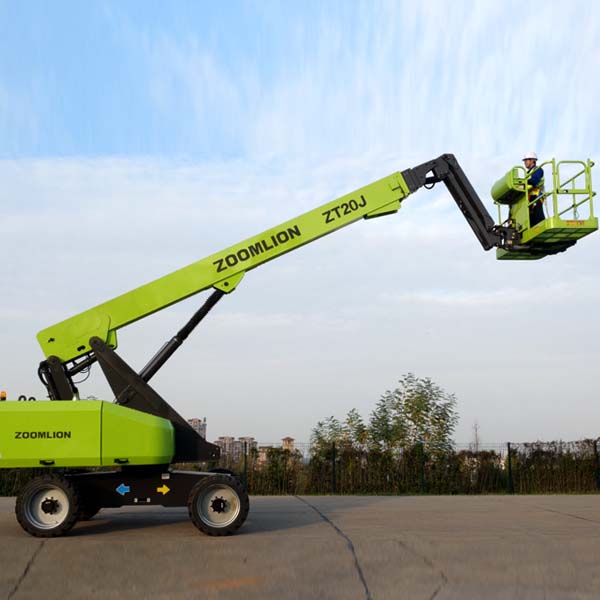

ZT20J straight arm aerial work platform, the platform rated load is double load, respectively up to 300/454 kilograms, four-wheel drive and swing wheel axle system greatly improve off-road performance, climbing ability up to 45%, to adapt to all kinds of harsh working conditions. Fault diagnosis system, the whole machine is designed to be maintenance-free, the engine support plate is of the type of external swing, which makes maintenance and maintenance more convenient and fast, the product has a high degree of universalization, can effectively reduce the total cost of ownership; Based on the Internet of Things rental operation + equipment monitoring integrated management platform, it can achieve equipment fault diagnosis, self-check at startup, maintenance reminder, and simple and efficient operation and management of the fleet.
