Telescopic Boom Lift

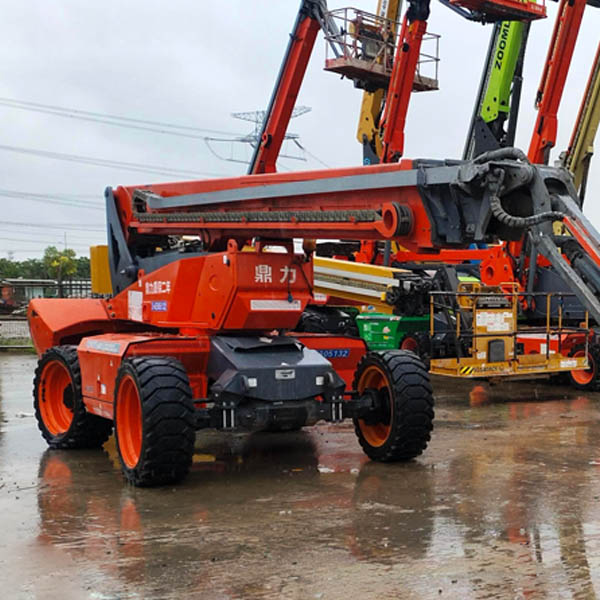

Used Dingli BT26RT Boom lift
As-IsLX-BT26RT
$12,000 – $61,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | BT26RT |
|---|---|
| Maximum working height | 26.32m |
| Maximum platform height | 24.32m |
| Maximum horizontal strain | 19.47m |
| Overall length (in folded state) | 10.76m |
| Overall length (in box) | 10.77m |
| Overall width (collapsed state) | 2.50m |
| Overall width (in packaging) | 2.31m |
| Overall height (in collapsed state) | 2.89m |
| Overall height (in box) | 2.57m |
| Work platform size (length x width) | 2.44m×0.90m |
| Minimum ground clearance | 0.41m |
| Wheelbase | 2.80m |
| Safety working load | 454kg |
| Maximum number of workers | 3 |
| Tail swing of the turntable | 1.61m |
| Minimum turning radius (inner/outer) | 1.87m/3.22m |
| Turntable rotation angle | 360° continuous |
| Platform swing angle | 180° |
| Forearm elevation angle | 130° |
| Travel speed (collapsible state) | ≤6.0km/h |
| Driving speed (working condition) | ≤1.1km/h |
| Maximum climbing ability | 45% |
| Maximum allowed working angle | X-5°/Y-5° |
| Tire | 385/45-28 |
| Engine Deutz TD2.9 L4 | 55.4kW |
| Fuel | Diesel |
| Hydraulic oil tank | 150L |
| Diesel tank | 135L |
| Gross weight | 15990kg |
Description
The BT26RT self-propelled telescopic boom lift features an integrated axle four-wheel drive system for superior off-road performance. It is equipped with a platform anti-crushing device that stops operation when a crushing hazard is detected. Across the entire series, 95% of key components and over 80% of structural parts are standardized, reducing spare parts inventory costs and improving maintenance efficiency.
