Telescopic Boom Lift

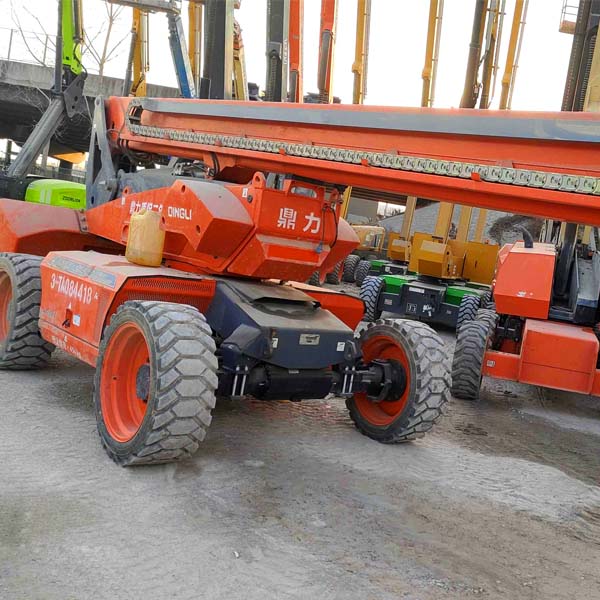

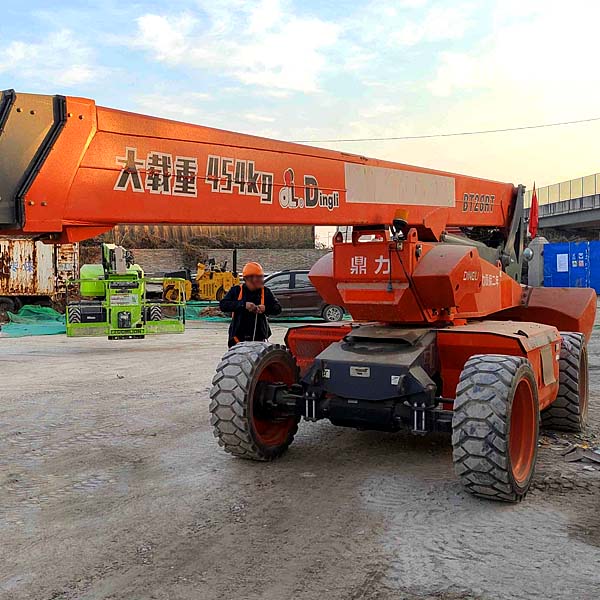

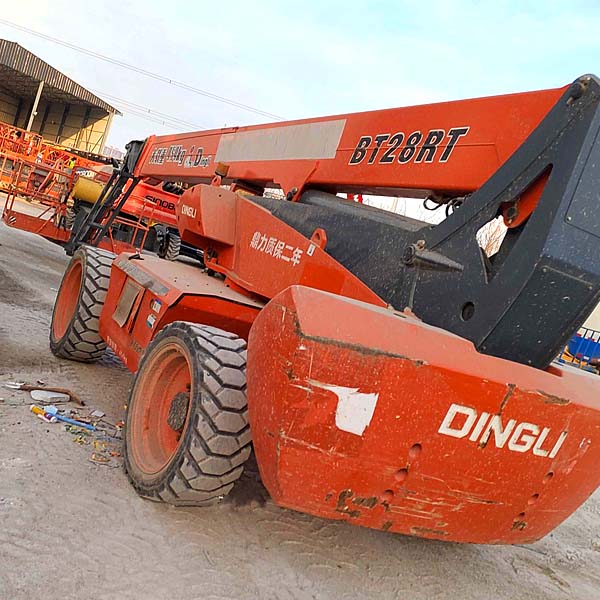

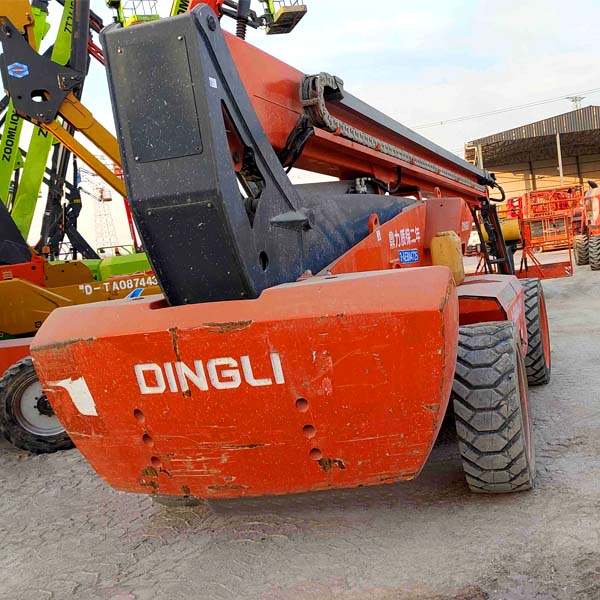

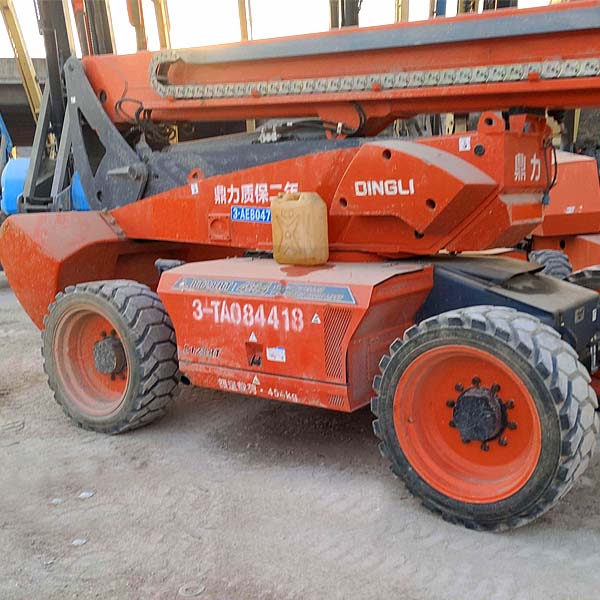

Used Dingli BT28RT Boom lift
As-IsLX-BT28RT
$12,000 – $61,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | BT28RT |
|---|---|
| Maximum working height | 28.60m |
| Maximum platform height | 26.60m |
| Maximum horizontal strain | 21.30m |
| Overall length (in folded state) | 11.39m |
| Overall length (in box) | 11.82m |
| Overall width (collapsed state) | 2.50m |
| Overall width (in packaging) | 2.31m |
| Overall height (in collapsed state) | 2.89m |
| Overall height (in box) | 2.57m |
| Work platform size (length x width) | 2.44m×0.90m |
| Minimum ground clearance | 0.41m |
| Wheelbase | 2.80m |
| Safety working load | 454kg |
| Maximum number of workers | 3 |
| Tail swing of the turntable | 1.61m |
| Minimum turning radius (inside wheel/ outside wheel) | 1.87m/3.22m |
| Turret rotation angle | 360° continuous |
| Platform swing angle | 180° |
| Forearm swing angle | 130° |
| Travel speed (collapsible state) | ≤6.0km/h |
| Driving speed (working condition) | ≤1.1km/h |
| Maximum climbing ability | 45% |
| Maximum allowed working angle | X-5°/Y-5° |
| Tire | 385/45-28 |
| Engine Deutz TD2.9 L4 | 55.4kW |
| Fuel | Diesel |
| Hydraulic oil tank | 150L |
| Diesel tank | 135L |
| Gross weight | 18300kg |
Description
This unit is available now. Key specifications: Model: BT28RT; Maximum working height: 28.60m; Maximum platform height: 26.60m; Maximum horizontal strain: 21.30m.
