Excavator

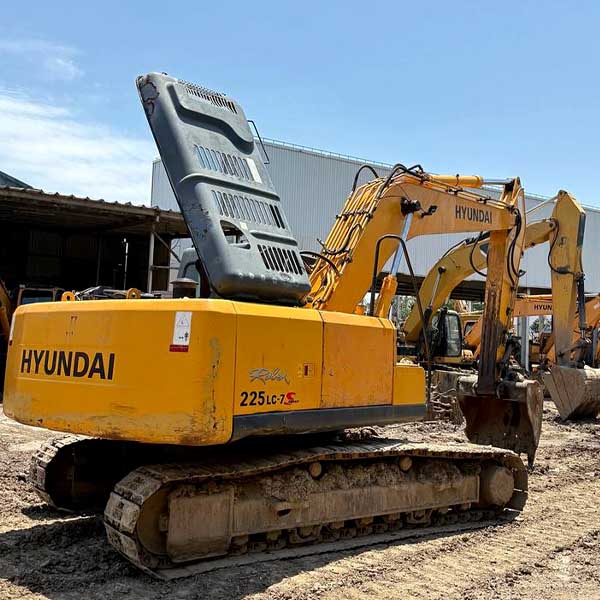

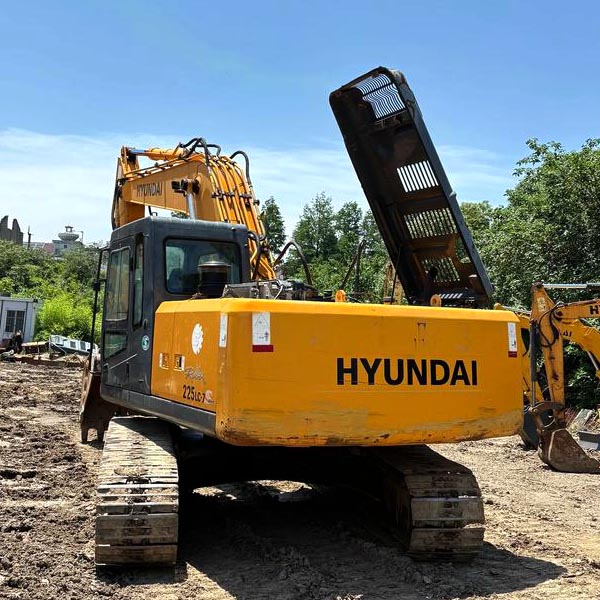

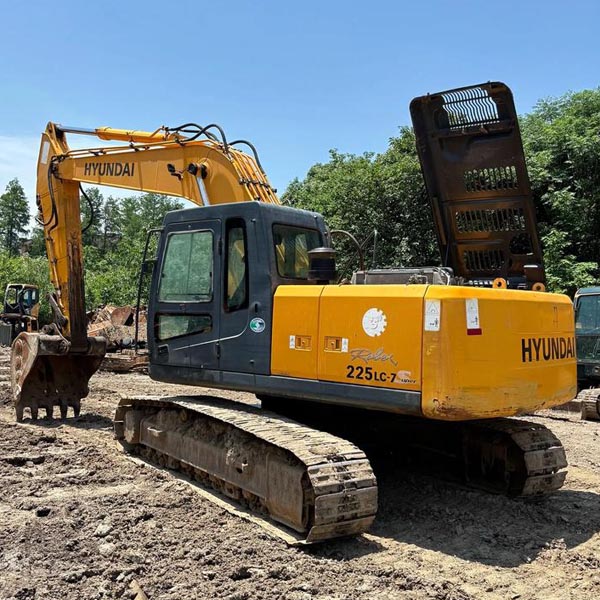

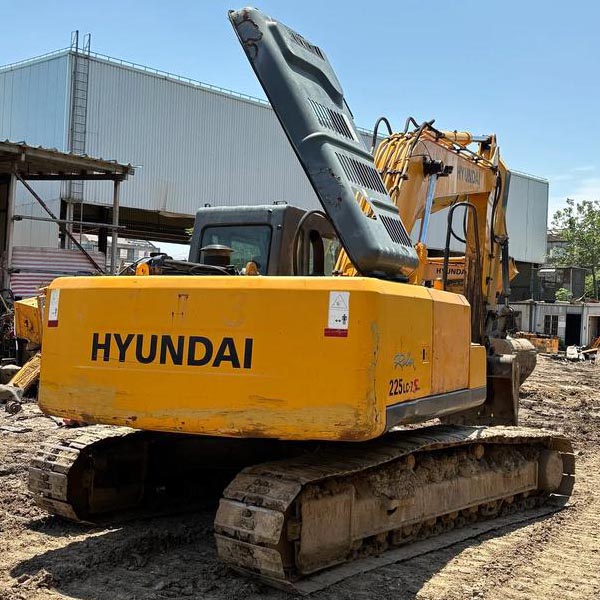

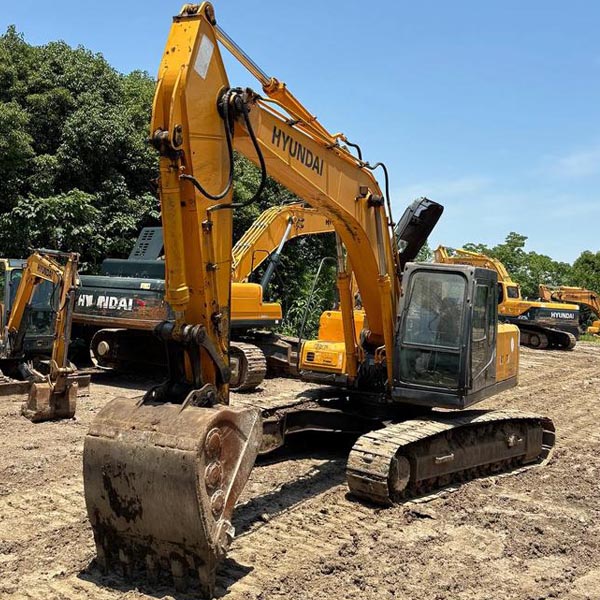

Used HYUNDAI R225LC-7
As-IsLX-R225LC7
$13,500 – $102,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| power | Traditional power |
|---|---|
| Bucket | Backhoe |
| Tonnage (tons) | 22 |
| Total machine operating weight (kg) | 22100 |
| Bucket capacity (m³) | 1.05 |
| boom length (mm) | 5680 |
| Stick length (mm) | 2920 |
| Rotational speed (rpm) | 12.5 |
| Walking speed (km/h) | 3.4-5.3 |
| Climbing ability (%) | 70/35° |
| Grounding specific voltage (kPa) | 47 |
| Bucket digging force (kN) | 152 |
| Stick digging force (kN) | 101 |
| Maximum traction force (kN) | 206.8 |
| Engine Model | Cummins B5.9-C |
| Rated power (kW/rpm) | 112/1950 |
| Maximum torque (Nm) | 613.5 |
| Displacement (L) | 5880 |
| Number of cylinders | 6 |
| Cylinder bore × stroke (mm) | 102×120 |
| Cooling method | Water cooling |
| Main pump type | 2× Variable Axial Piston Pump |
| Type of walking hydraulic motor | Variable swashplate axial piston pump |
| Rotary hydraulic motor type | Displacement swashplate axial piston pump |
| Main pump maximum flow rate (l/min) | 2×220 |
| Pilot oil circuit (MPa) | 35 |
| Working hydraulic circuit (MPa) | 330 |
| Travel hydraulic circuit (MPa) | 330 |
| Rotary hydraulic circuit (MPa) | 240 |
| Boom cylinder – Number × Cylinder diameter × Stroke (mm) | 120×85×1290 |
| boom cylinder – number × cylinder diameter × stroke (mm) | 140×100×1510 |
| Bucket cylinders – Number × Cylinder diameter × Stroke (mm) | 125×85×1050 |
| Is a hydraulic crushing pipeline standard equipment? | no |
| Fuel tank (L) | 320 |
| Hydraulic oil tank (L) | 180 |
| Hydraulic system (L) | 270 |
| Engine oil change volume (L) | twenty four |
| Coolant (L) | 35 |
| Total transport length (mm) | 9520 |
| Total width of transport (mm) | 2990 |
| Total transport height (mm) | 2990 |
| Overall cab height (mm) | 2920 |
| Upper vehicle width (mm) | 2700 |
| Track ground contact length (mm) | 3650 |
| Total track length (mm) | 4440 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track gauge (mm) | 2390 |
| Minimum ground clearance (mm) | 480 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of the front working device (mm) | 3640 |
| Rear end turning radius (mm) | 2830 |
| Maximum excavation radius (mm) | 9940 |
| Maximum excavation radius at the stopping face (mm) | 9780 |
| Maximum digging depth (mm) | 6740 |
| Maximum digging height (mm) | 9470 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical excavation depth (mm) | 6120 |
| Maximum effective digging depth (mm) | 6550 |
| bulldozer blade width × height (mm) | none |
| Bulldozer blade lifting or pushing depth (mm) | none |
Description
This unit is available now. Key specifications: power: Traditional power; Bucket: Backhoe; Tonnage (tons): 22; Total machine operating weight (kg): 22100.
