Excavator

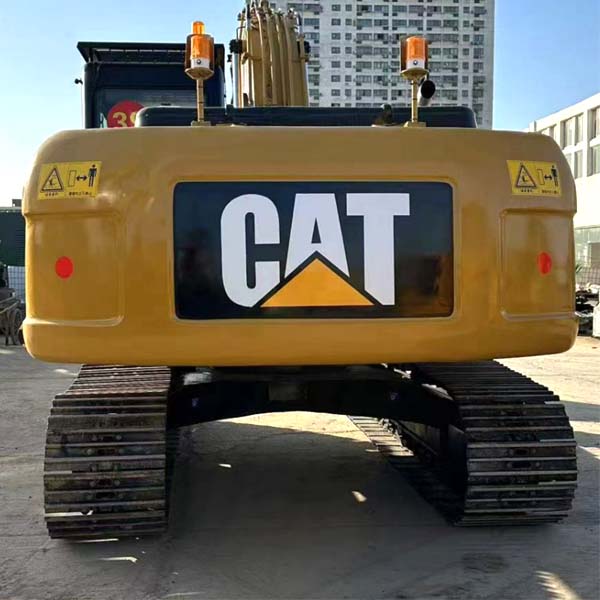

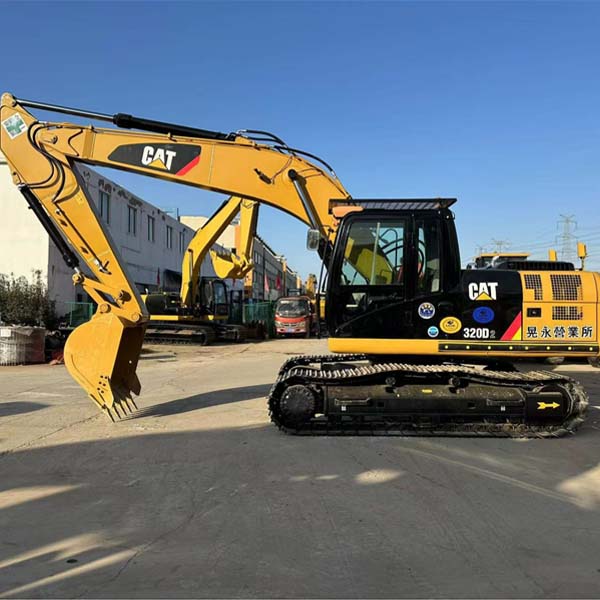

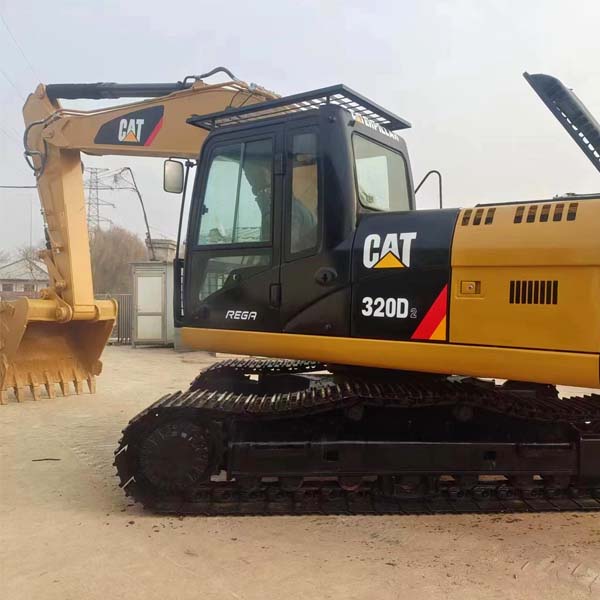

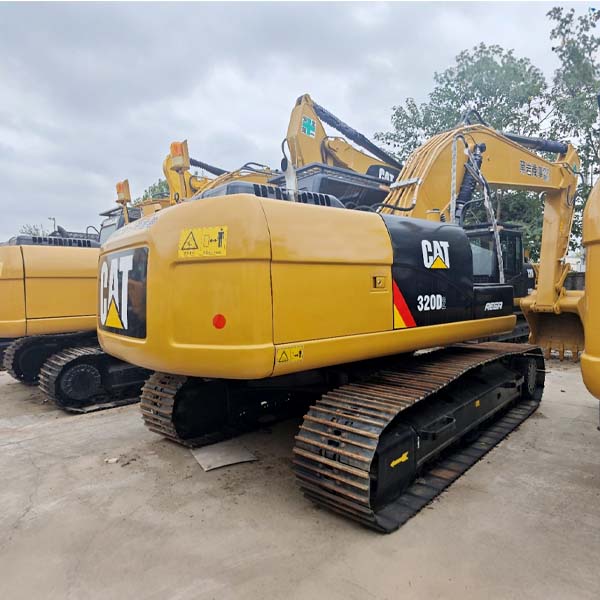

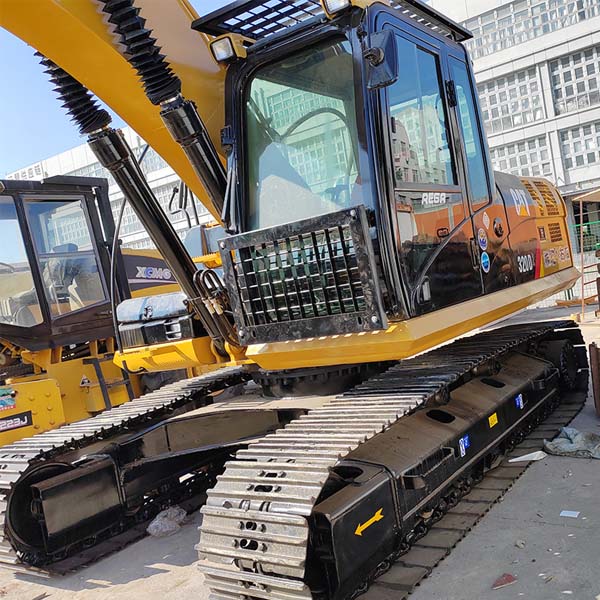

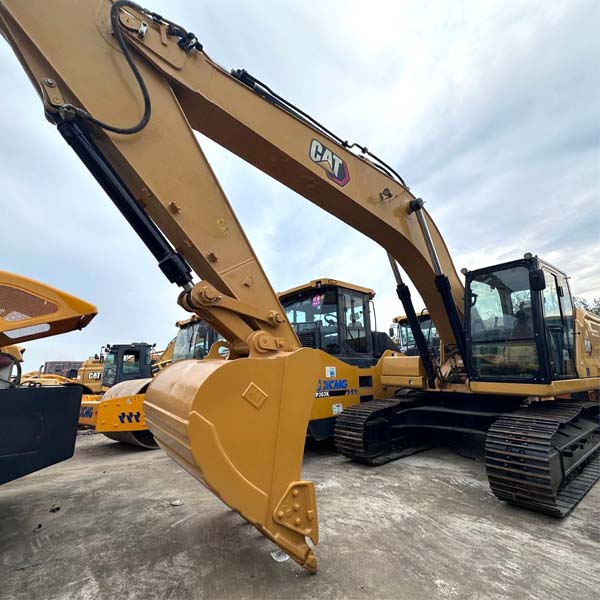

Used CAT 320D
As-IsIn stockLX-CAT320-2020
$56,500 – $64,000EXW · negotiable
- Year
- 2020
- Hours
- 5600 h
- Condition grade
- B · working order
- Location
- 郑州
- Availability
- In stock · 1 unit
- Warranty
- 6-month remote warranty
- Power
- 柴油
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Category: | Caterpillar excavator |
|---|---|
| Brand: | Caterpillar |
| Standard bucket capacity: | 1m³ |
| Gross vehicle weight: | 20930KG |
| Engine power: | 103KW |
| Engine brand: | CAT |
| Engine model: | C6.4 ACERT |
| Fuel tank capacity: | 410L |
| Engine displacement: | 6.37L |
| Maximum digging height: | 9480mm |
| Maximum unloading height: | 6500mm |
| Maximum digging depth: | 6710mm |
| Maximum vertical digging depth: | 6180mm |
| Maximum digging depth horizontally at 8 feet: | 6540mm |
| Minimum unloading height: | 2180mm |
| Luffing length: | 5700mm |
| Prong length: | 2900mm |
| Arm digging force (kN) | 106.4kN |
| Bucket digging force (kN) | 140.1kN |
| Standard bucket width: | 1232mm |
| Main pump maximum flow: | 2×205L/min |
| Prime pump maximum flow: | 32.4L/min |
| Return oil pressure relief valve set pressure: | 25Mpa |
| Work oil circuit pressure relief valve setting pressure: | 35Mpa |
| Pressure setting of the flow oil route overflow valve: | 35Mpa |
| Leading oil circuit safety valve set pressure: | 3.9Mpa |
| Number of boom cylinders * cylinder diameter * stroke: | 2*120*1260mm |
| Number of bucket arm cylinder * cylinder diameter * stroke: | 1*140*1504mm |
| Number of bucket cylinders*cylinder diameter*stroke: | 1*120*1104mm |
| Hydraulic tank capacity: | 120L |
| Hydraulic system capacity: | 260L |
| Engine coolant capacity: | 25L |
| Engine oil capacity: | 30L |
| Capacity of the rotary device: | 8L |
| Walking deceleration device capacity: | 10L |
| Track plate width: | 600mm |
| Track length: | 4075mm |
| Center distance of the track/gauge: | 2200mm |
| Track ground contact length (wheelbase): | 3265mm |
| Maximum traction: | 206KN |
| Driving (walk) speed (high/low): | 5.7km/h |
| Rotating speed: | 11.5r/min |
| Tailstock swing radius: | 2750mm |
| Minimum ground clearance: | 450mm |
| Weighted clearance: | 1020mm |
| Platform width: | 2800mm |
| Cab overall height: | 2950mm |
| Overall length of the machine: | 9460mm |
| Full width of the machine: | 2800mm |
| Full height of the whole machine: | 3050mm |
Description
The Cat 320D engine, equipped with the Cat C6A CETRA™ engine, is powerful and durable, meeting all your application needs. For customers looking to save fuel, the economy mode function can save up to 15% in fuel consumption. The CETRA engine integrates proven, durable components and precision manufacturing technology, ensuring reliable and efficient performance for its all-day operation. The engine speed is automatically controlled.
