Excavator

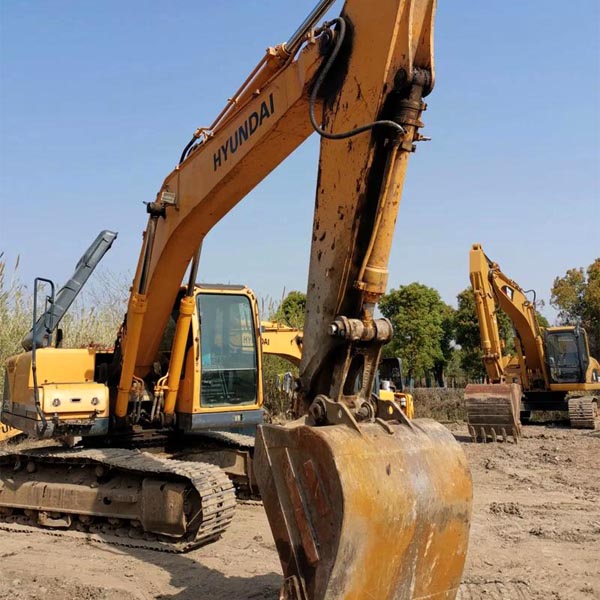

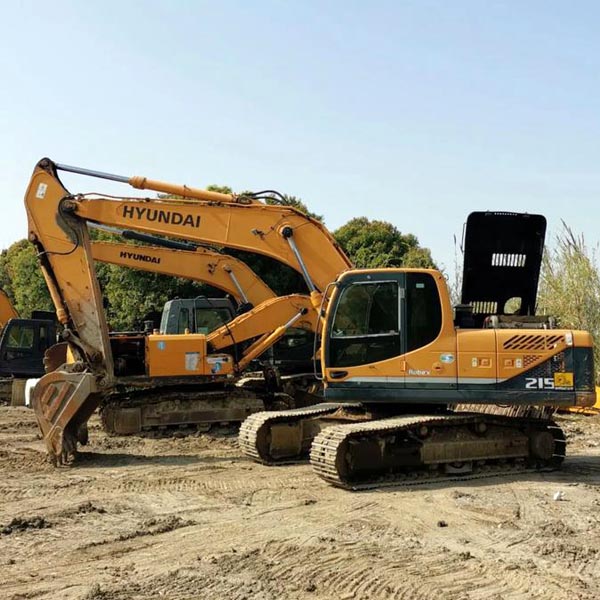

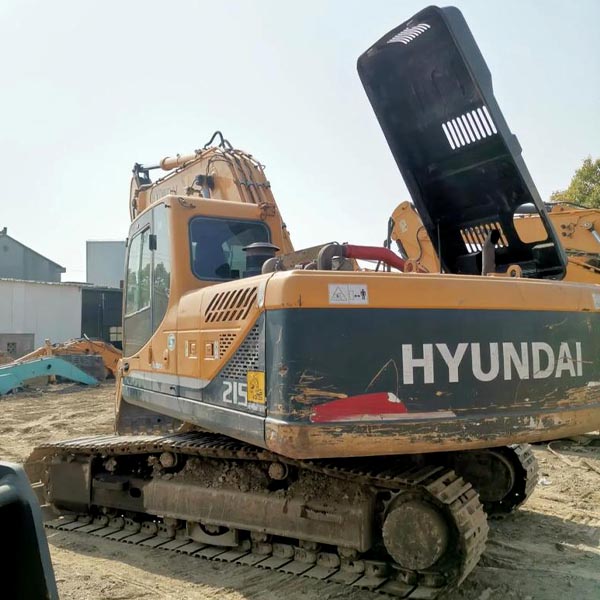

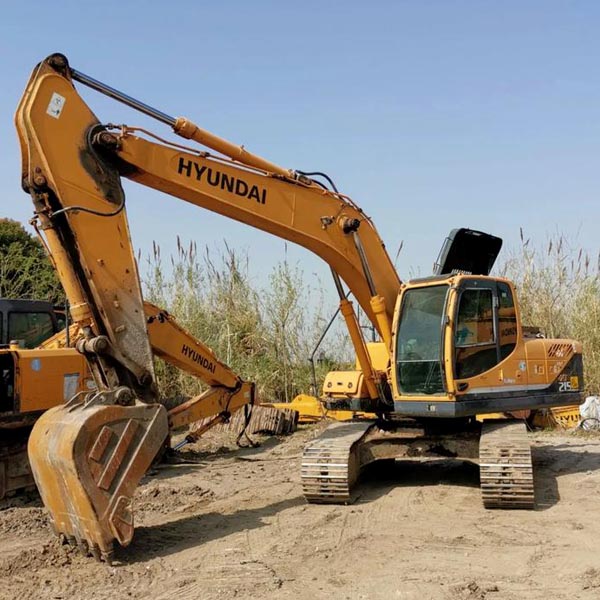

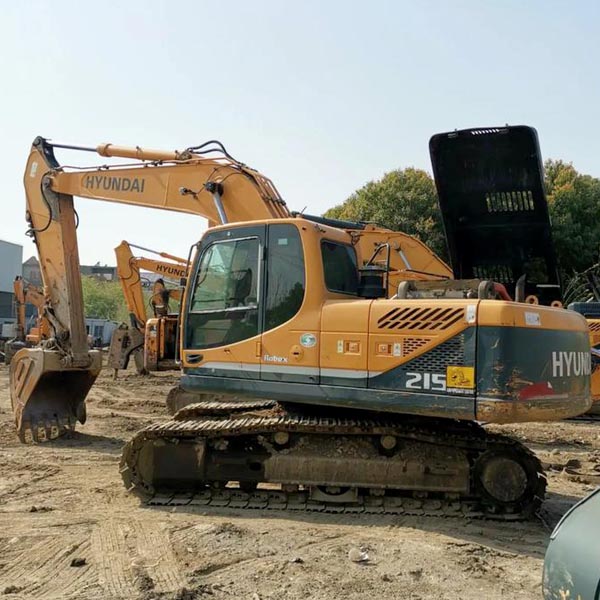

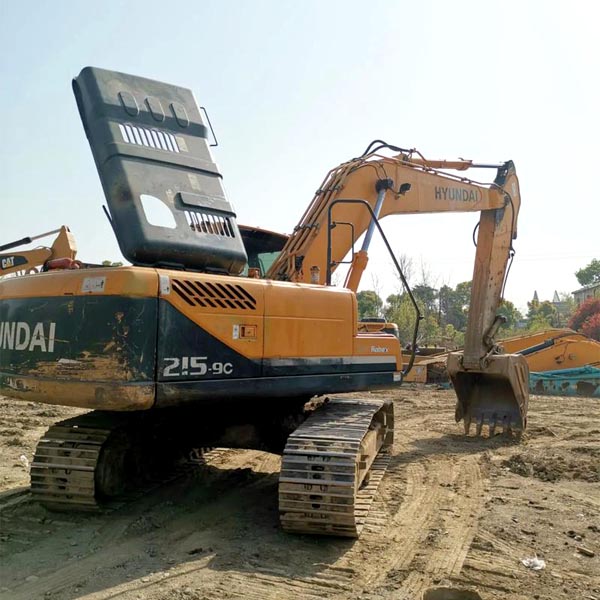

Used HYUNDAI R215-9C
As-IsLX-R2159C
$13,500 – $102,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Classification: | Tracked excavator |
|---|---|
| Standard bucket capacity: | 0.92m³ |
| Total vehicle weight: | 20900KG |
| Engine power: | 112KW |
| Engine brand: | Cummins |
| Engine model: | B5.9-C |
| Engine fuel tank capacity: | 400L |
| Maximum digging height: | 9600mm |
| Maximum unloading height: | 6780mm |
| Maximum excavation depth: | 6730mm |
| Maximum vertical excavation depth: | 6280mm |
| Maximum excavation radius: | 9980mm |
| Minimum radius of gyration: | 3740mm |
| boom length: | 2920mm |
| Stick digging force (ISO): | 100.4kN |
| Bucket digging force (ISO): | 140.9kN |
| Main pump maximum flow rate: | 2*222L/min |
| Working oil circuit overflow valve set pressure: | 32.4 MPa |
| Hydraulic oil tank capacity: | 160L |
| Track plate width: | 600mm |
| Track length: | 4160mm |
| Track center distance/track gauge: | 2200mm |
| Track ground contact length (wheel spacing): | 3370mm |
| Number of track rollers (per side): | 2 |
| Number of support rollers (per side): | 9 |
| Grounding specific voltage: | 47kPa |
| Maximum traction: | 191KN |
| Driving speed (high/low): | 3.4~5.3km/h |
| Rotation speed: | 12r/min |
| Climbing ability: | 70% |
| Tail turning radius: | 2840mm |
| Minimum ground clearance: | 480mm |
| Counterweight ground clearance: | 1060mm |
| Platform width: | 2740mm |
| Disembarkation platform width: | 2800mm |
| Overall height of the cab: | 2920mm |
| Overall length of the machine: | 9530mm |
| Full width of the machine: | 2800mm |
| Overall height of the machine: | 3030mm |
Description
This unit is available now. Key specifications: Classification:: Tracked excavator; Standard bucket capacity:: 0.92m³; Total vehicle weight:: 20900KG; Engine power:: 112KW.
