Excavator

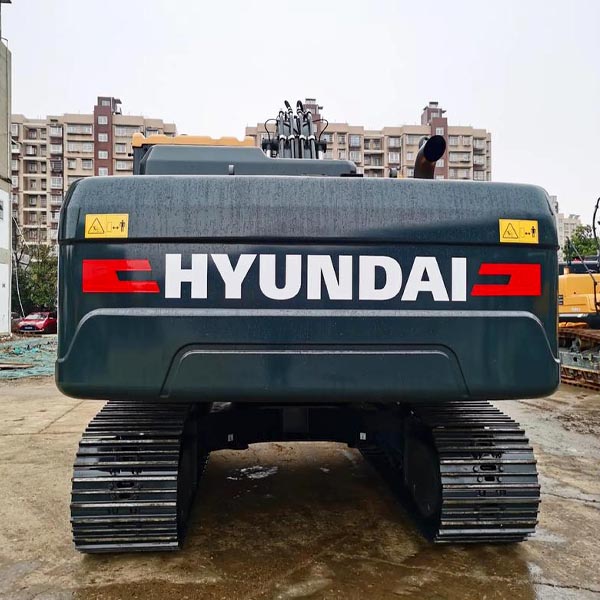

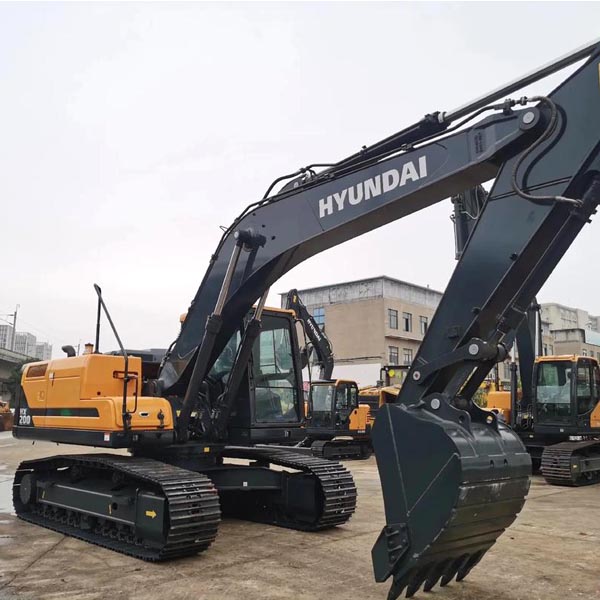

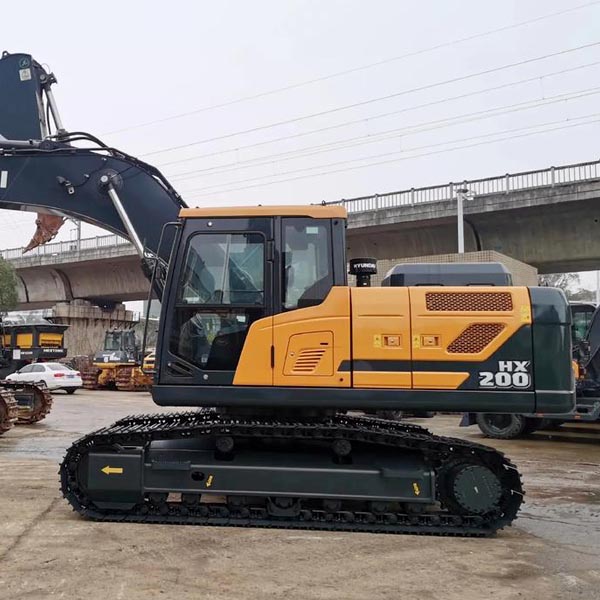

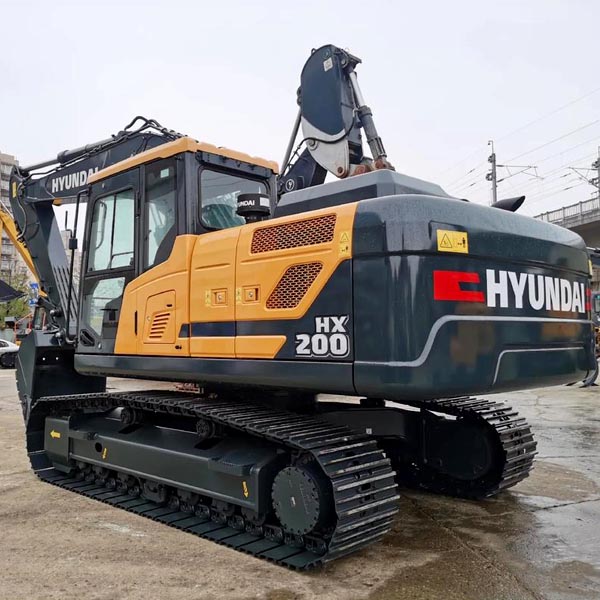

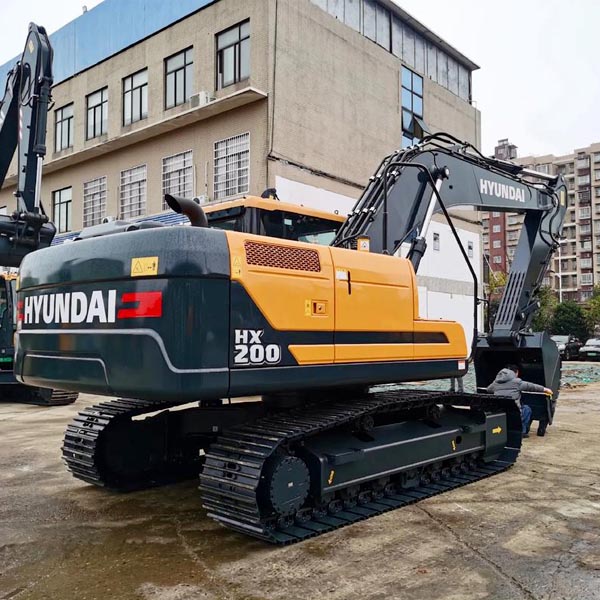

Used HYUNDAI HX200
As-IsLX-HX200
$13,500 – $102,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| power | fuel |
|---|---|
| Bucket | Backhoe |
| Tonnage (tons) | 20 |
| Total machine operating weight (kg) | 19900 |
| Bucket capacity (m³) | 0.9 |
| boom length (mm) | 5680 |
| Stick length (mm) | 2700 |
| Rotational speed (rpm) | 10.54 |
| Slewing torque (Nm) | 65.3 |
| Walking speed (km/h) | 5.1/3.3 |
| Climbing ability (%) | 35° |
| Grounding specific voltage (kPa) | 0.48 |
| Bucket digging force (kN) | 15.4 |
| Stick digging force (kN) | 11.6 |
| Maximum traction force (kN) | 22.6 |
| Engine Model | Cummins F4.5 |
| Rated power (kW/rpm) | 125/2200 |
| Maximum torque (Nm) | 670/1300 |
| Fuel tank (L) | 395 |
| Hydraulic oil tank (L) | 160 |
| Hydraulic system (L) | 280 |
| Engine oil change volume (L) | 13 |
| Coolant (L) | 34 |
| Total transport length (mm) | 9525 |
| Total width of transport (mm) | 2800 |
| Total transport height (mm) | 3010 |
| Overall cab height (mm) | 3030 |
| Upper vehicle width (mm) | 2750 |
| Total track length (mm) | 4165 |
| Track plate width (mm) | 600 |
| Track gauge (mm) | 2200 |
| Minimum ground clearance (mm) | 470 |
| Rear end turning radius (mm) | 2890 |
| Number of track rollers (one side) | 2 |
| Number of track plates (one side) | 46 |
| Number of support rollers (on one side) | 7 |
| Maximum excavation radius at the stopping face (mm) | 9600 |
| Maximum digging depth (mm) | 6520 |
| Maximum digging height (mm) | 9450 |
| Maximum unloading height (mm) | 6640 |
| Maximum vertical excavation depth (mm) | 5960 |
| Maximum effective digging depth (mm) | 6330 |
Description
This unit is available now. Key specifications: power: fuel; Bucket: Backhoe; Tonnage (tons): 20; Total machine operating weight (kg): 19900.
