Loader

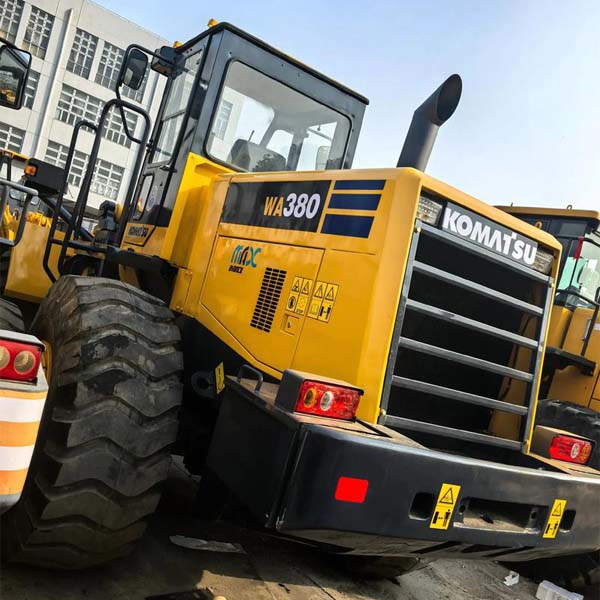

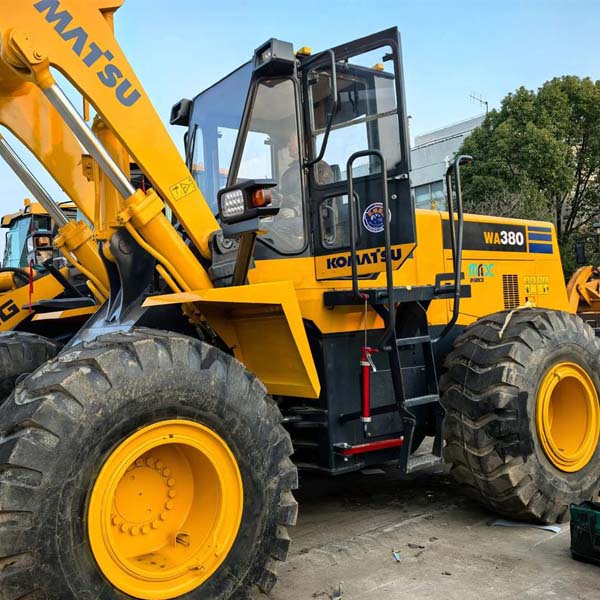

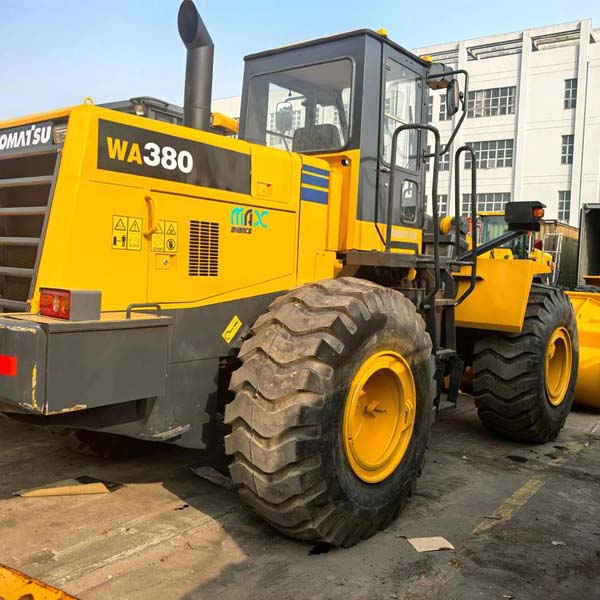

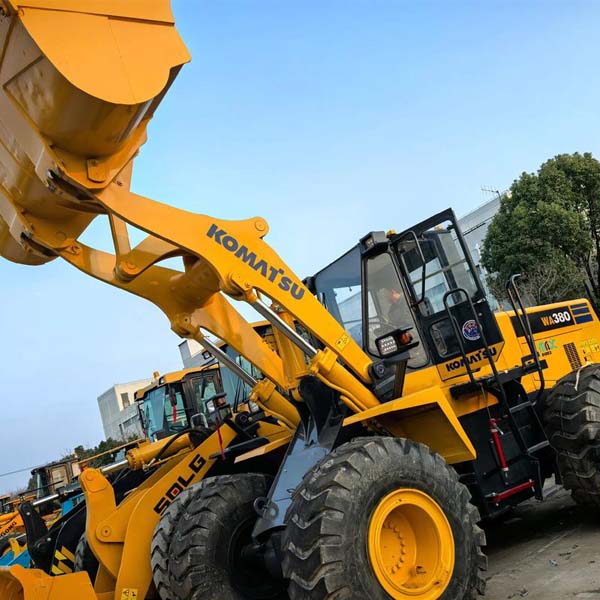

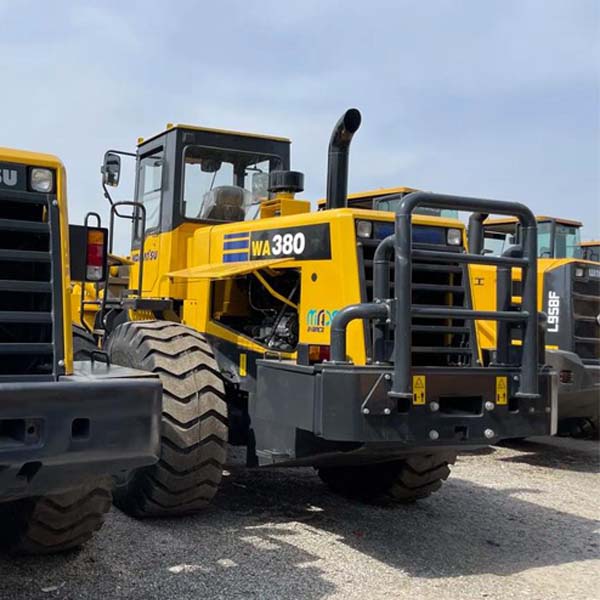

Used KOMATSU WA380
As-IsLX-WA380
$12,000 – $18,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Project | WA380-3 |
|---|---|
| Operating quality (kg) | 16360 |
| Rated power(kw) | 146 |
| Rated bucket capacity(m³) | 3 |
| Rated load(kg) | 5000 |
| Maximum- Unloading height (mm) | 2900 |
| Unloading distance (mm) | 1170 |
| Excavating power (lifting power) (kN) | 168 |
| Rated load (tons) | 5-6 |
| Engine model | Komatsu SA6D114 |
| Displacement (L) | 8.27 |
| Rated power (kw/rpm) | 146/2200 |
| Fuel tank (L) | 285 |
| Engine oil (L) | 19 |
| Driving speed 1st gear (km/h) | 7.7/8.0 |
| Driving speed 2nd gear (km/h) | 12.3/12.8 |
| Driving speed 3 gears (km/h) | 21.4/22.6 |
| Driving speed 4 gears (km/h) | 34.0/35.0 |
| Steering angle | 40° |
| Minimum turning radius of the outer wheel center line | 5475 |
| Maximum traction (kN) | 147 |
| Maximum climbing ability (°) | 25 |
| Minimum ground clearance (mm) | 455 |
| Overall length of the machine (mm) | 7965 |
| Overall width of the machine (mm) | 2780 |
| Overall height (mm) | 3380 |
| Wheelbase (mm) | 3200 |
Description
The WA380-3 features an automatic downshift switch on the boom lever. When loading in 2nd gear, the operator can easily shift to 1st gear for more powerful bucket penetration.
