Excavator

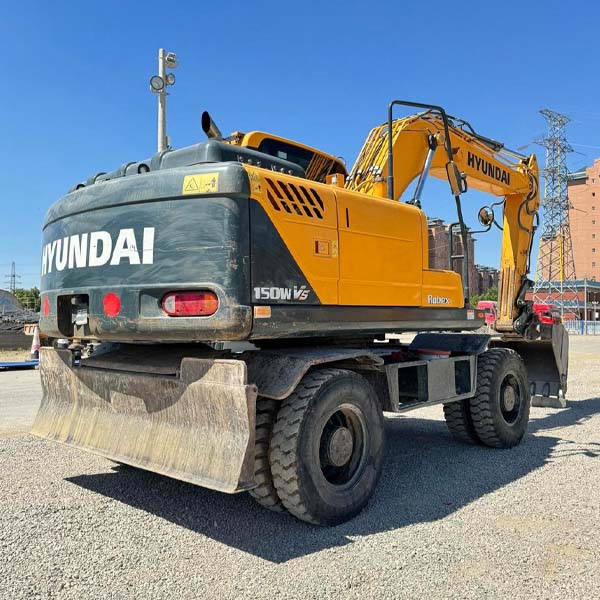

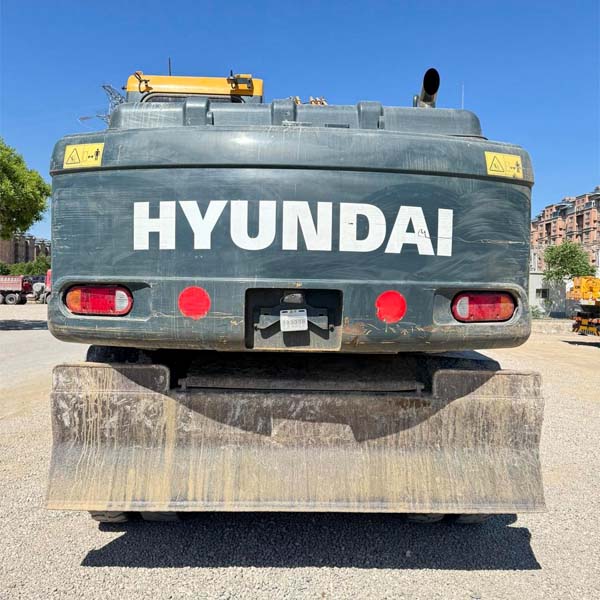

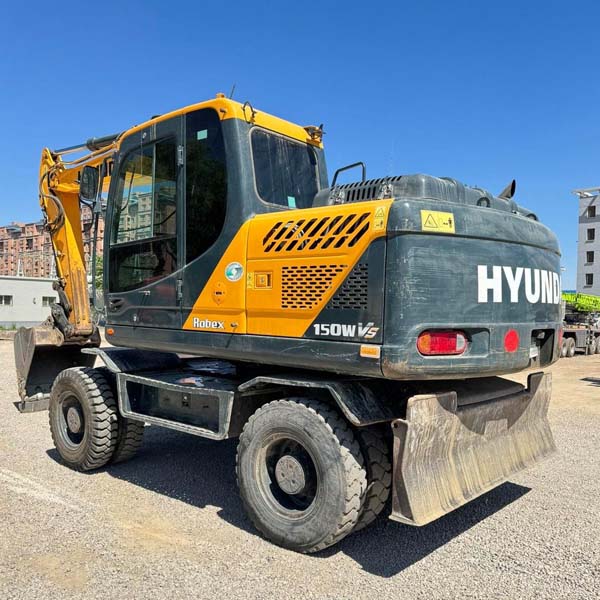

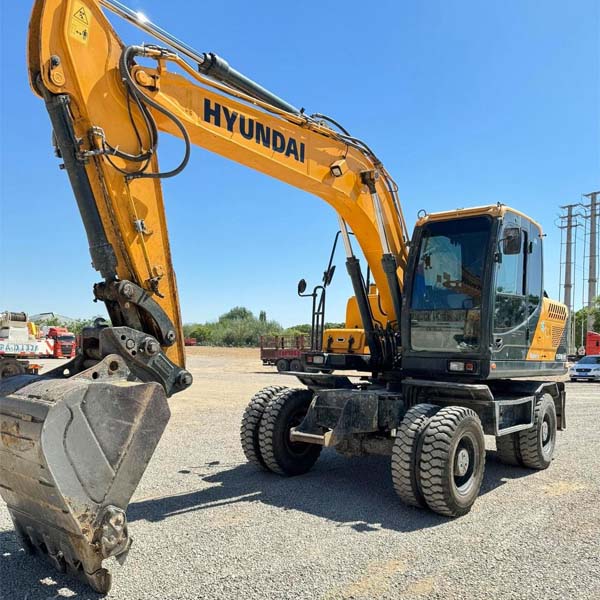

Used HYUNDAI 150W
As-IsLX-150W
$13,500 – $102,000indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Device model | R150WVS PRO |
|---|---|
| Short name of the model | 150 |
| Ton range | Small wheel dig (under 15 tons) |
| Walking style | Tire type |
| Model | QSB7 |
| Rated power (kW) | 124 |
| Rated speed (r/min) | 2050 |
| Maximum torque (N·m) | 658 |
| Total Displacement (L) | 6.7 |
| Number of cylinders (PCs) | 6 |
| Cylinder diameter x stroke (mm) | 107×124 |
| Engine brand | Cummins |
| Working weight (kg) | 13780 |
| Shovel bucket capacity (m³) | 0.58 |
| Walking speed (high/low) (km/h) | Oct-38 |
| Rotating speed (rpm) | 11.6 |
| Climb ability (%) | 70 |
| Lifting arm length (mm) | 4600 |
| Stick length (mm) | 2100 |
| Length x width x height (in transport state) (mm) | 7820×2500×3140 |
| Weighted clearance (mm) | 1233 |
| Wheelbase (mm) | 2800 |
| Track width (mm) | 1944 |
| Minimum ground clearance (mm) | 340 |
| Minimum turning radius of front-end work device (mm) | 2670 |
| Trailing radius (mm) | 2310 |
| Tire size | 9.00R20-16PR, Double layer (with inner tube) |
| Maximum digging radius (mm) | 7920 |
| Maximum digging radius of the boom (mm) | 7700 |
| Maximum digging depth (mm) | 8470 |
| Maximum Unloading Height (mm) | 6040 |
| Maximum vertical digging depth (mm) | 4460 |
Description
Hyundai R150WVS PRO wheel digging full imported hydraulic system, powerful performance, high reliability, German imported ZF bridge box, fast travel speed, extremely low failure rate.
