Crane

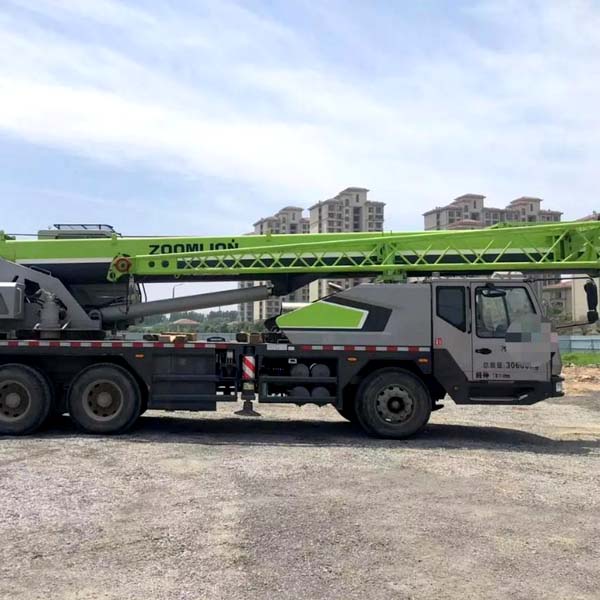

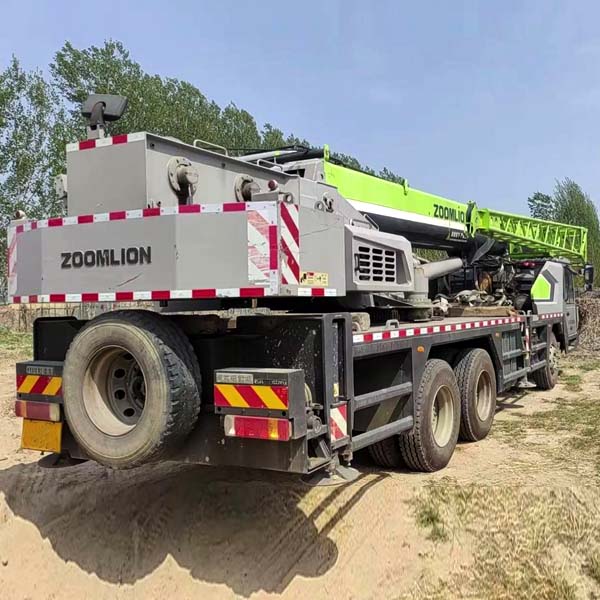

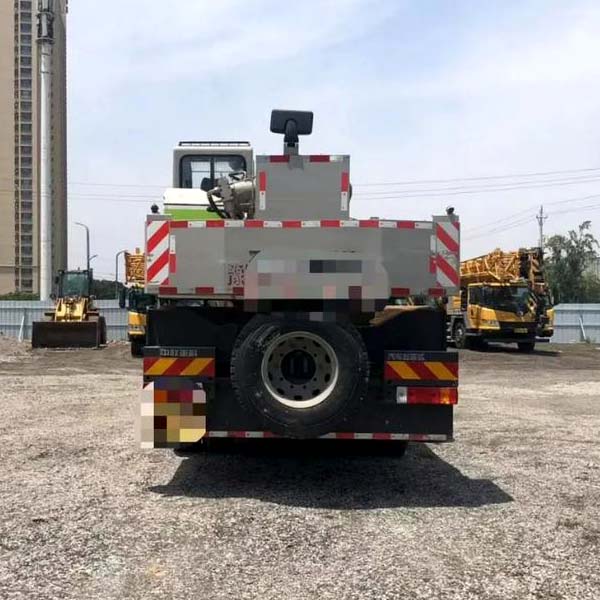

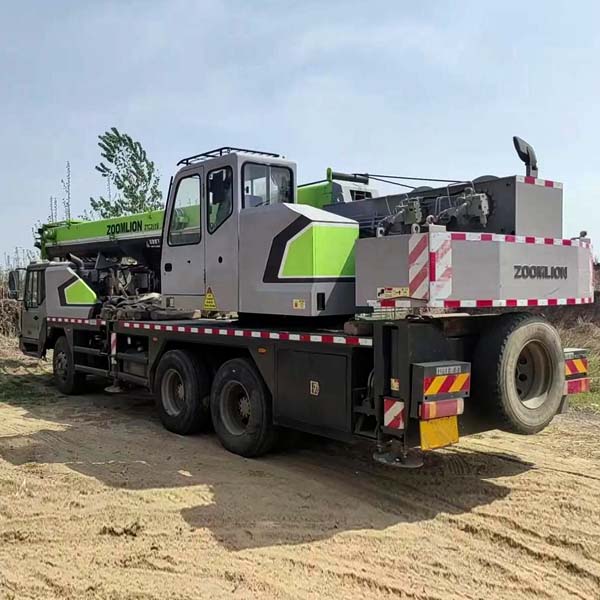

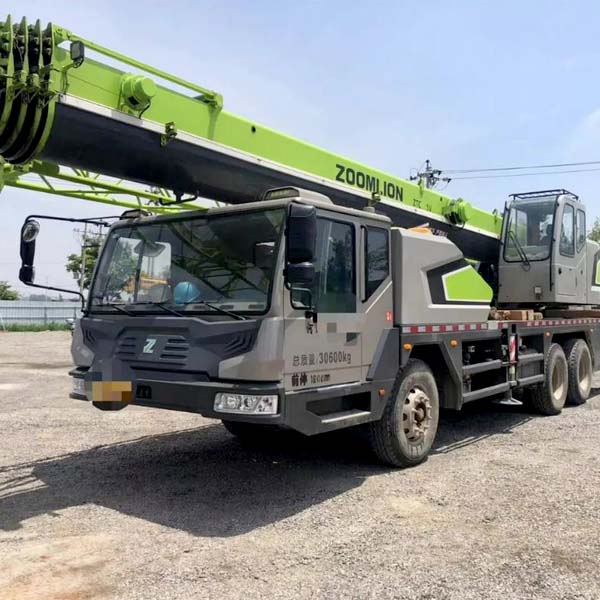

Used ZOOMLION ZTC201V551
As-IsLX-ZTC201V551
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Device model | ZTC201V551 |
|---|---|
| Whole vehicle curb weight (kg) | 30470 |
| Driving condition self weight (total mass) (kg) | 30600 |
| Front axle load (kg) | 6500 |
| Front and rear axle load (kg) | 24100 |
| Rated total lifting capacity (kg) | 20000 |
| Basic arm maximum lifting torque (kN·m) | 960 |
| Basic arm maximum lifting height (m) | 10.9 |
| Maximum lifting moment of the longest boom (kN·m) | 598 |
| Maximum lifting height of the main arm (m) | 40.2 |
| Secondary arm maximum lift height (m) | 47.8 |
| Revolution radius of the tailstock (mm) | 3265 |
| Single rope maximum speed (main winch) (m/min) | 135 |
| Single Rope Maximum Speed ( auxiliary winch ) (m/min) | 135 |
| Lifting arm luffing/desluffing time (s) | 25 |
| Lifting boom full extension/full retraction time (s) | 82 |
| Revolution speed (r/min) | 0～3 |
| Maximum speed (km/h) | 85 |
| Maximum climbing gradient (%) | 42 |
| Minimum turning diameter (m) | ≤20 |
| Minimum ground clearance (mm) | 260 |
| Fuel consumption per hundred kilometers (L) | 28 |
| Dimensions (length x width x height) (mm) | 12600×2500×3450 |
| Outrigger longitudinal distance (m) | 5.4 |
| Outrigger transverse distance (m) | Full extension 6.2, half extension 4.25 |
| Boom length (m) | 10.2～40.0 |
| Main arm elevation (°) | -2～80 |
| Deputy Arm Length (m) | 8 |
| Sub-shoulder Mounting Angle (°) | 0, 15, 30 |
Description
Following the successful launch of Zoomlion’s “4.0” flagship truck crane, this newly developed entry-level 5-section boom model extensively incorporates proven “4.0” technologies, significantly enhancing its technological sophistication and practicality. Designed with reliability, efficiency, and cost-effectiveness in mind, it delivers robust performance, high operational efficiency, and reduced operating costs—offering outstanding value while maximizing return on investment.
