Scissor Lift

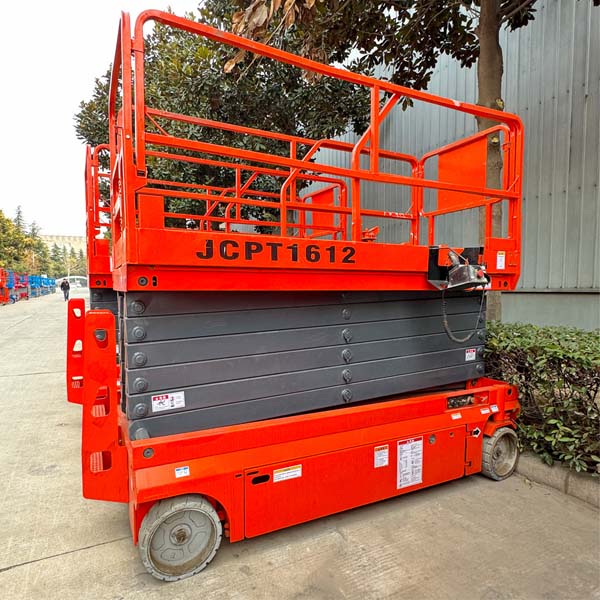

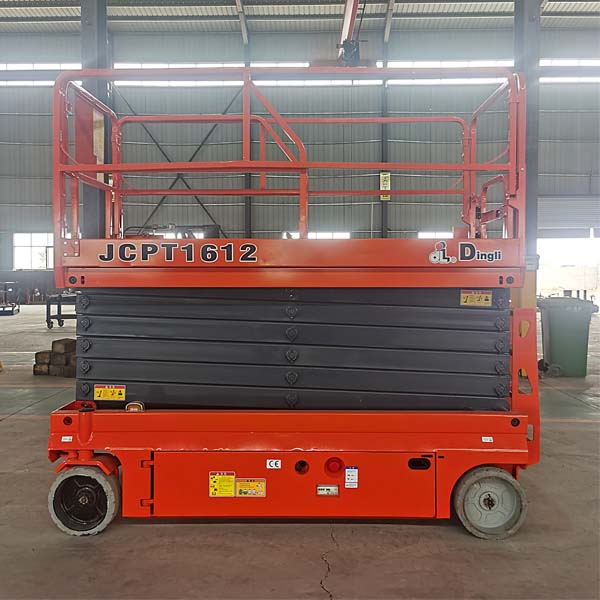

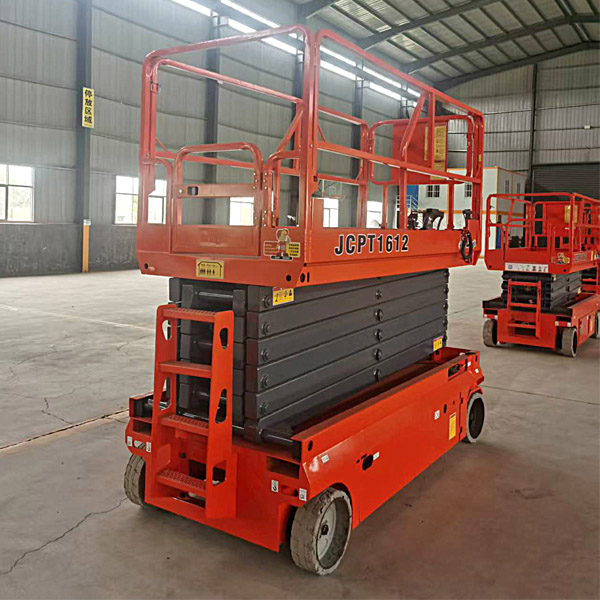

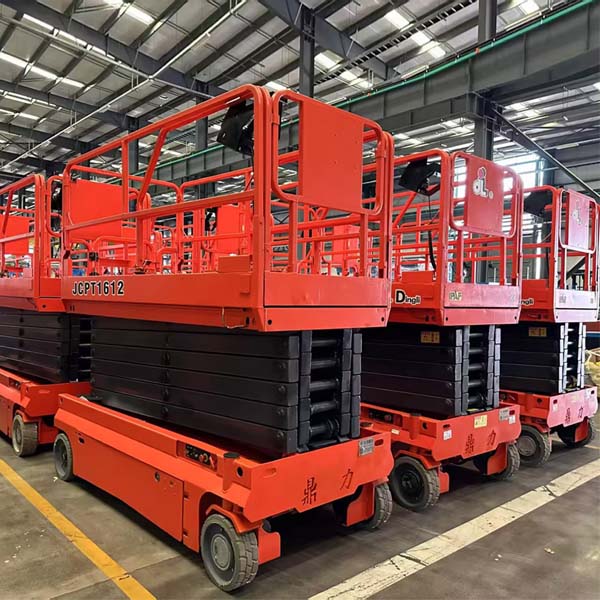

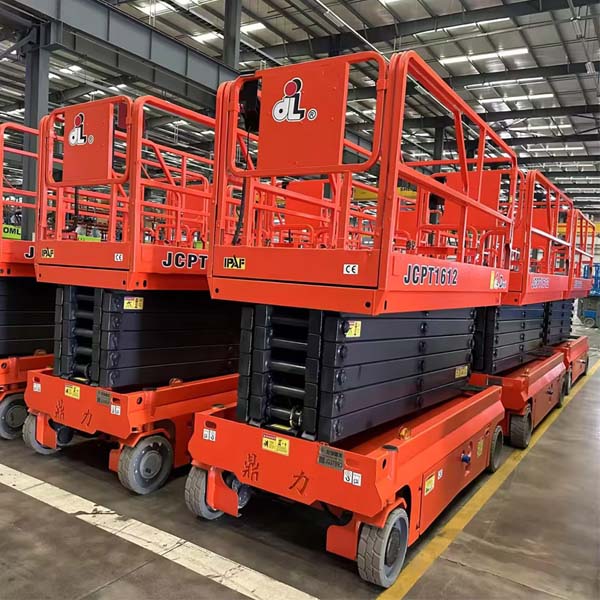

Used Dingli JCPT1612 Scissor lift
As-IsIn stockLX-JCPT1612DC-2018
$5,500 – $6,500EXW · negotiable
- Year
- 2018
- Hours
- Not recorded
- Condition grade
- B · working order
- Location
- 上海
- Availability
- In stock · 100 units
- Warranty
- 6-month remote warranty
- Power
- 纯电
- Working height
- 16 m
- HS code
- 8428909090
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | JCPT1612HD |
|---|---|
| Maximum working height | 15.70m |
| Maximum platform height | 13.70m |
| Overall length | 2.84m |
| Overall width | 1.25m |
| Full height of the machine (fence not folded) | 2.59m |
| Overall height (fence folded) | 2.05m |
| Work platform size (length x width) | 2.64mX1.12m |
| Platform extension dimensions | 0.90m |
| Minimum ground clearance (in collapsed state) | 0.10m |
| Minimum ground clearance (raised position) | 0.019m |
| Wheelbase | 2.22m |
| Safety working load | 200kg |
| Extended platform safe working load | 113kg |
| Maximum number of workers | 2 |
| Minimum turning radius (inner wheel) | 0m |
| Minimum turning radius (outer wheel) | 2.65m |
| Machine travel speed (collapsible state) | 3.5km/h |
| Machine travel speed ( lifting state ) | 0.8km/h |
| Ascent/Descent rate | 88/60sec |
| Maximum climbing ability | 25% |
| Maximum allowable angle of operation | 1.5°/3° |
| Tire | 381X127mm |
| Lifting/Driving motor | 24V/4.5kW |
| Battery | 4X12V/300Ah |
| Charger | 24V/25A |
| Weight of the whole machine | 3130kg |
Description
JCPT1612HD Mobile Scissor Lift Access Platform Hydraulic Motor Drive Main Specifications Working Height 170m Working Load: 200kg Important Features Battery driven, low noise, no pollution, suitable for various working environments Automatic pit protection system, safer, reliable Single-way extension platform, can quickly reach the work point Fault code automatic display for easy maintenance.
