Scissor Lift

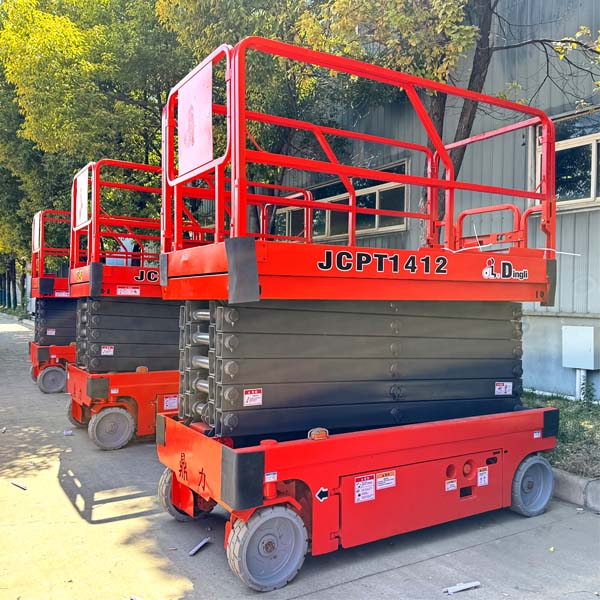

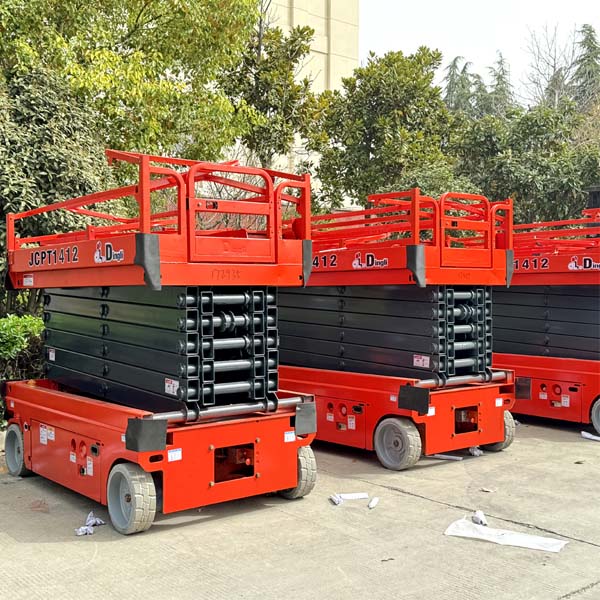

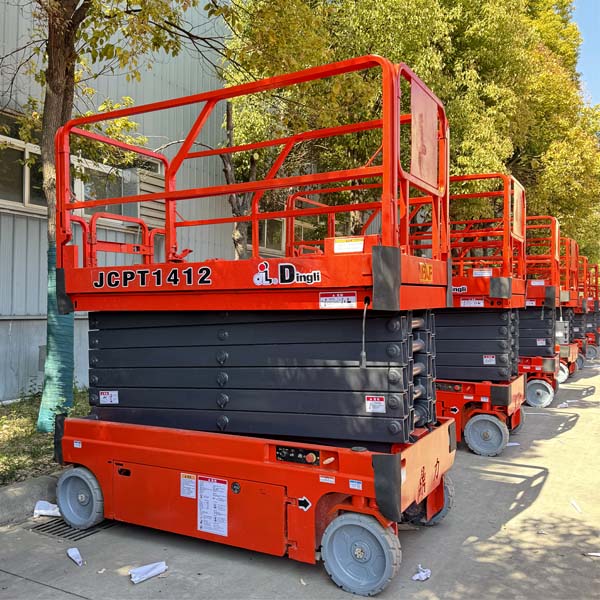

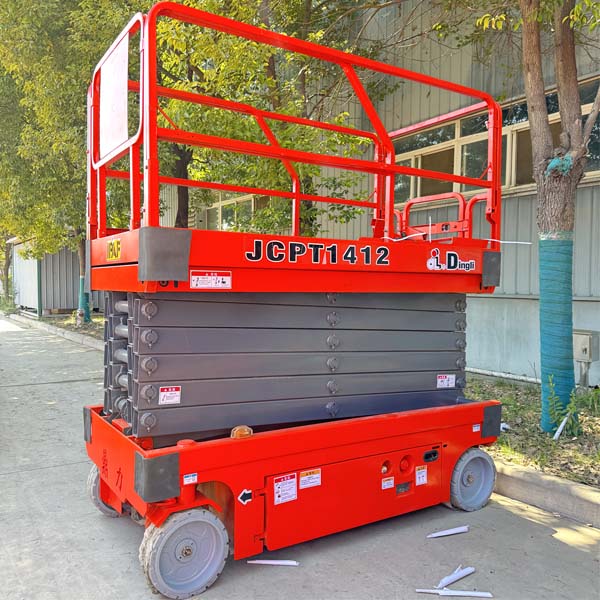

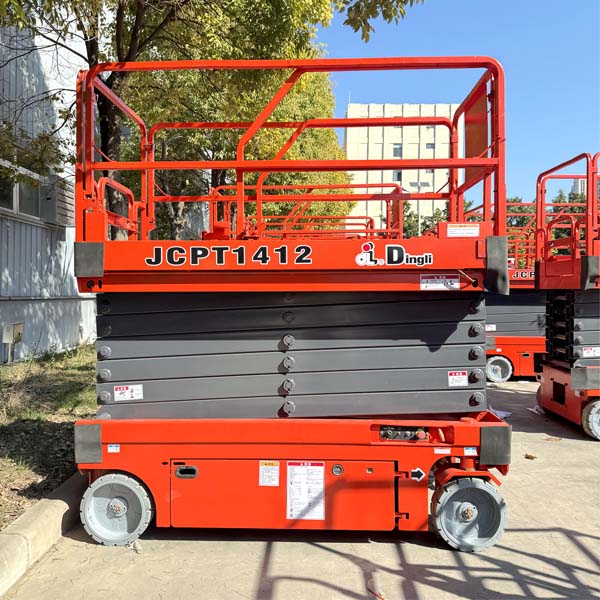

Used Dingli JCPT1412 Scissor lift
As-IsIn stockLX-JCPT1412DC-2018
$4,000 – $4,500EXW · negotiable
- Year
- 2018
- Hours
- Not recorded
- Condition grade
- B · working order
- Location
- 上海
- Availability
- In stock · 100 units
- Warranty
- 6-month remote warranty
- Power
- 纯电
- Working height
- 16 m
- HS code
- 8428909090
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | JCPT1412HD |
|---|---|
| Maximum working height A | 13.80m |
| Maximum platform height B | 11.80m |
| Overall length C | 2.48m |
| Overall width D | 1.19m |
| Full height of the machine (fence not folded) | 2.62m |
| Overall height (fence folded) E | 2.09m |
| Work platform size (length x width F) | 2.27mX1.12m |
| Platform extension dimension G | 0.90m |
| Minimum ground clearance (in collapsed state) | 0.10m |
| Minimum ground clearance (raised position) | 0.019m |
| Wheelbase | 1.87m |
| Safety working load (European standard/US standard) | 320kg/250kg |
| Extended platform safe working load | 113kg |
| Maximum number of workers | 3 |
| Minimum turning radius (inner wheel) | 0m |
| Minimum turning radius (outer wheel) | 2.20m |
| Machine travel speed (collapsible state) | 3.5km/h |
| Machine travel speed ( lifting state ) | 0.8km/h |
| Ascent/Descent rate | 65/38sec |
| Maximum climbing ability | 25% |
| Maximum allowed working angle (European standard/US standard) | 1.5°/3°, 2°/3° |
| Tire | 381X127mm |
| Lifting/Driving motor | 24V/4.5kW |
| Battery | 4X12V/300Ah |
| Charger | 24V/25A |
| Gross weight of the machine (European standard) | 2840kg |
| Gross weight of the machine (US standard) | 3060kg |
Description
JCPT1412HD self-propelled scissor lift for high-altitude work, battery-driven, low noise, no pollution, suitable for various working environments. Automatic pothole protection system, safer and reliable. Single-sided extension platform, can quickly reach the work point. Fault code display for easy maintenance.
