Scissor Lift

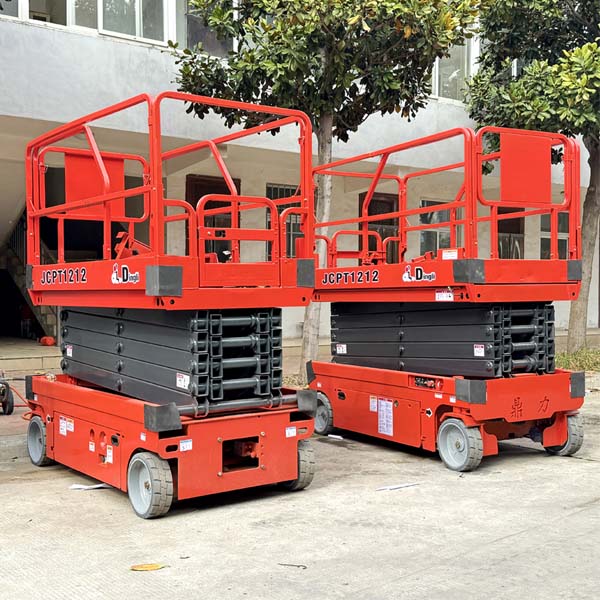

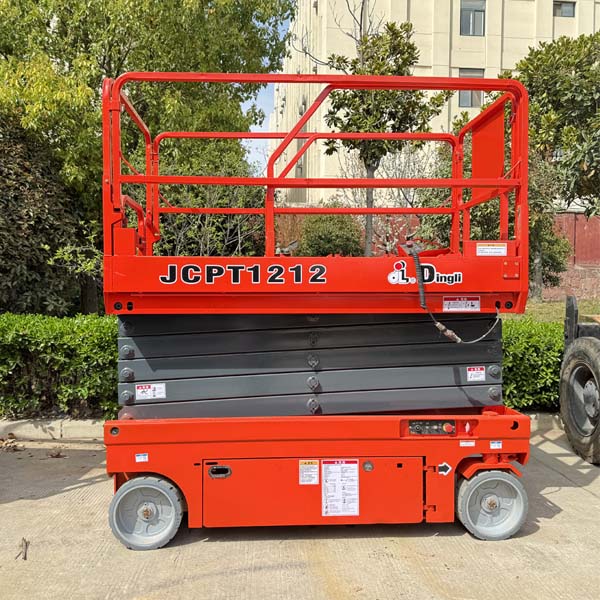

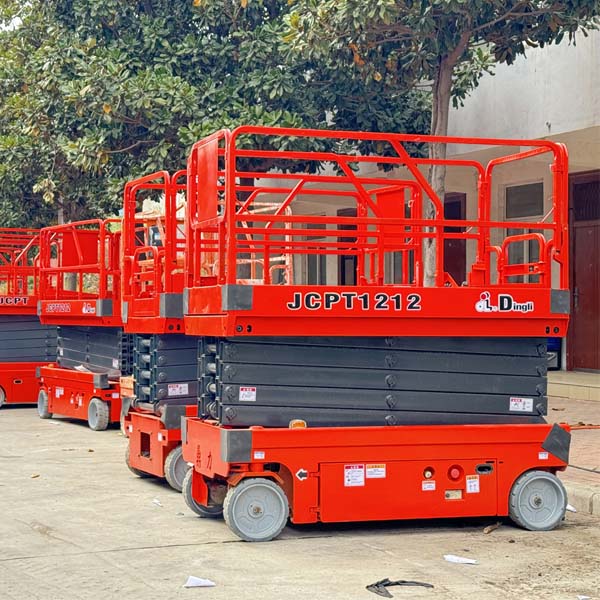

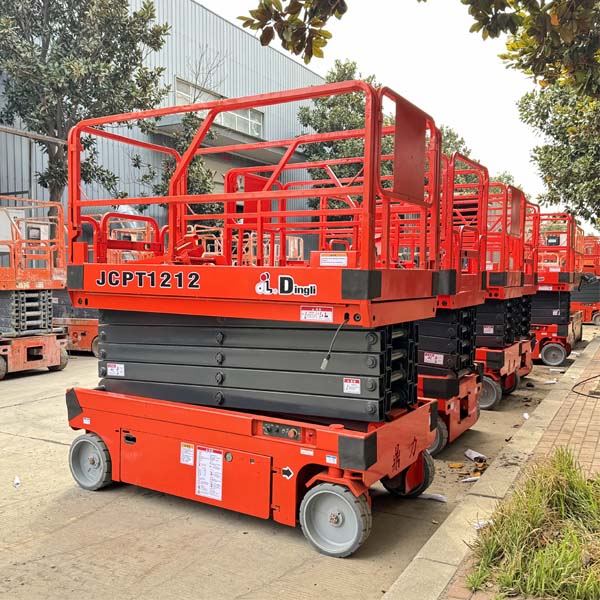

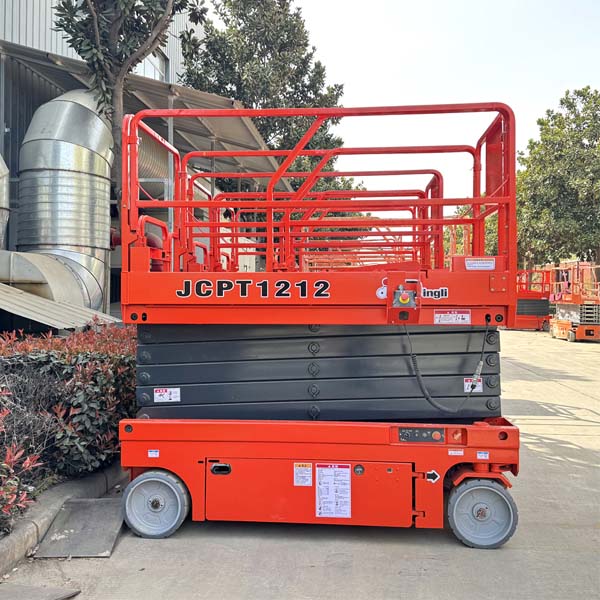

Used Dingli JCPT1212 Scissor lift
As-IsLX-JCPT1212
$3,000 – $6,500indicative range for this machine class
- Year
- Not recorded
- Hours
- Not recorded
- Condition grade
- Not graded yet
- Location
- Sourced to order
- Availability
- Sourced to order after confirmation
- Warranty
- Ask us
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | JCPT1212HD |
|---|---|
| Maximum working height | 12.00m |
| Maximum platform height | 10.00m |
| Overall length | 2.48m |
| Overall width | 1.15m |
| Full height of the machine (fence not folded) | 2.49m |
| Overall height (fence folded) | 1.96m |
| Work platform size (length x width) | 2.27mX1.12m |
| Platform extension dimensions | 0.90m |
| Minimum ground clearance (collected state) | 0.10m |
| Minimum ground clearance (raised position) | 0.019m |
| Wheelbase | 1.87m |
| Safety working load | 320kg |
| Extended platform safe working load | 113kg |
| Maximum number of workers | 2 |
| Minimum turning radius (inner wheel) | 0m |
| Minimum turning radius (outer wheel) | 2.20m |
| Machine travel speed (collapsible state) | 3.5km/h |
| Machine travel speed ( lifting state ) | 0.8km/h |
| Ascent/Descent rate | 45/36sec |
| Maximum climbing ability | 25% |
| Maximum allowed working angle (European standard/US standard) | 1.5°/3°, 2°/3° |
| Tire | 381X127mm |
| Lifting/Driving motor | 24V/4.5kW |
| Battery | 4X6V/240Ah |
| Charger | 24V/25A |
| Gross weight of the machine (European standard) | 2945kg |
| Gross weight of the machine (US standard) | 2510kg |
Description
JCPT1212HD self-propelled scissor lift aerial work platform with battery as power source, low noise, no pollution, suitable for various working environments, equipped with automatic pit protection system, safer and reliable.
