Scissor Lift

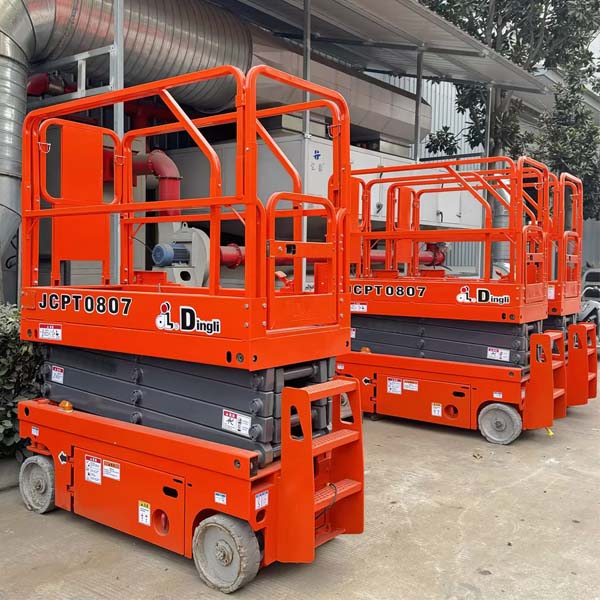

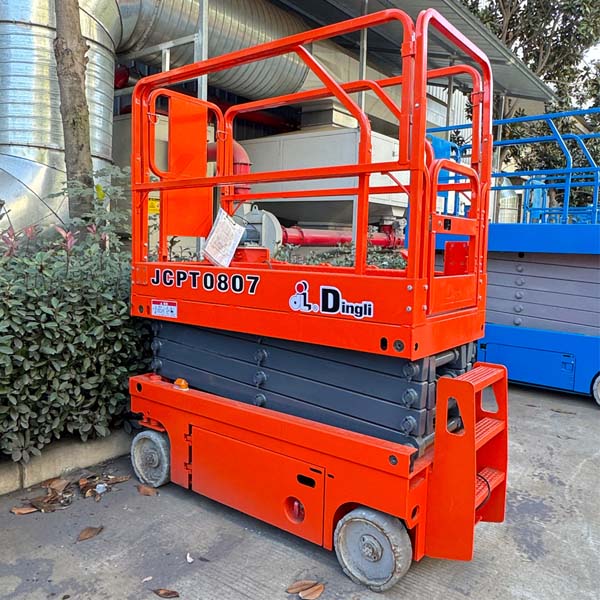

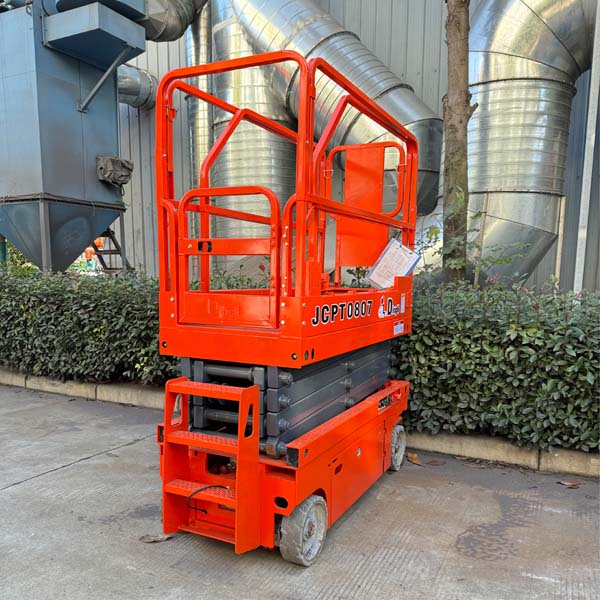

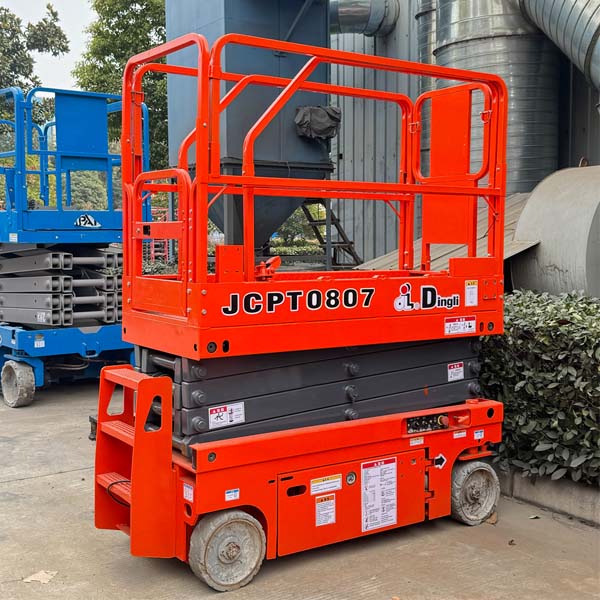

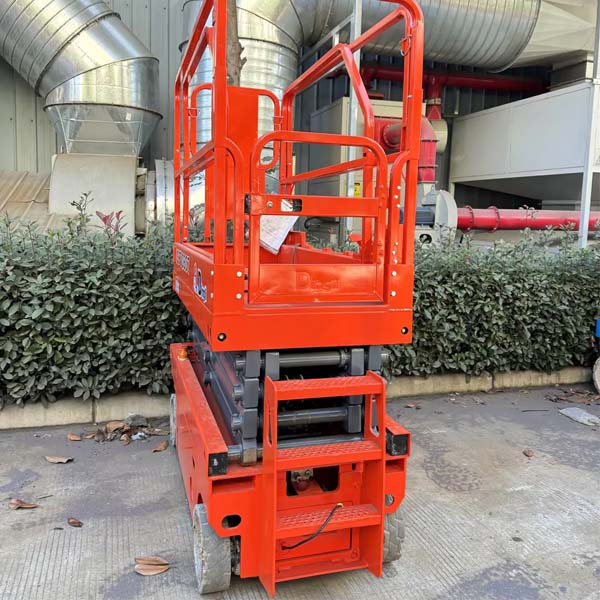

Used Dingli JCPT0807 Scissor lift
As-IsIn stockLX-JCPT0807HD-2018
$3,500 – $4,000EXW · negotiable
- Year
- 2018
- Hours
- Not recorded
- Condition grade
- B · working order
- Location
- 上海
- Availability
- In stock · 9 units
- Warranty
- 6-month remote warranty
- Power
- 纯电
- Working height
- 8 m
- HS code
- 8428909090
Year, hours and grade appear only where we have verified them. See what every machine is checked against · Delivery standards
Request a quote
Get a personalized quote within 1 business day.
Specifications
| Model | JCPT0807DC |
|---|---|
| Maximum working height A | 7.80m |
| Maximum platform height B | 5.80m |
| Overall length C | 1.86m |
| Overall width D | 0.76m |
| Full height of the machine (fence not folded) | 2.15m |
| Overall height (fence folded) E | 1.83m |
| Work platform size (length x width F) | 1.67mX0.74m |
| Platform extension dimension G | 0.90m |
| Minimum ground clearance (in collapsed state) | 0.072m |
| Minimum ground clearance (raised position) | 0.016m |
| Wheelbase | 1.36m |
| Safety working load | 230kg |
| Extended platform safe working load | 113kg |
| Maximum number of workers | 2 |
| Minimum turning radius (inner wheel) | 0m |
| Minimum turning radius (outer wheel) | 1.64m |
| Machine travel speed (collapsible state) | 4.5km/h |
| Machine travel speed ( lifting state ) | 0.8km/h |
| Ascent/Descent rate | 27/22sec |
| Maximum climbing ability | 25% |
| Maximum allowable angle of work | 2°/3° |
| Tire | 305X100mm |
| Lifting motor | 24V/2kW |
| Drive motor | 24V/0.5kW |
| Battery | 4X6V/210Ah |
| Charger | 24V/25A |
| Gross weight | 1415kg |
Description
JCPT0807DC Walking Scissor Lift Access Platform with DC Motor Drive, Low Noise, No Pollution, Suitable for Various Working Environments; Automatic Pothole Protection System, Safer and Reliable; Single Direction Extension Platform, Can Rapidly Reach the Working Point; Fault Code Display for Easy Maintenance.
